120V Lighting Track Mini Straight Joiner Series
120V Lighting Track Mini Straight Joiner Series
Couldn't load pickup availability
The 120V Lighting Track Mini Straight Joiner Series is a compact electrical connector designed to join two compatible track lighting sections end-to-end, creating a clean and continuous straight track run. Its low-profile design fits directly inside the track for a streamlined architectural appearance.
Designed for 120V track lighting systems, the Mini Straight Joiner maintains the electrical connection between adjoining track sections while preserving proper grounding and polarity. Available in Matte Black, Matte White, and Matte Silver finishes to coordinate with the track system.
Features
- Connects two lighting track sections end-to-end
- Designed for straight, continuous track runs
- Compact, low-profile design
- Compatible with 120V track lighting systems
- Integrated ground conductor for proper electrical continuity
- Designed to maintain correct track polarity
- Set screws securely lock the joiner to both track sections
- Adds approximately 1/8" (3 mm) to the overall track run
- Overall joiner length approximately 3-1/8" (79 mm)

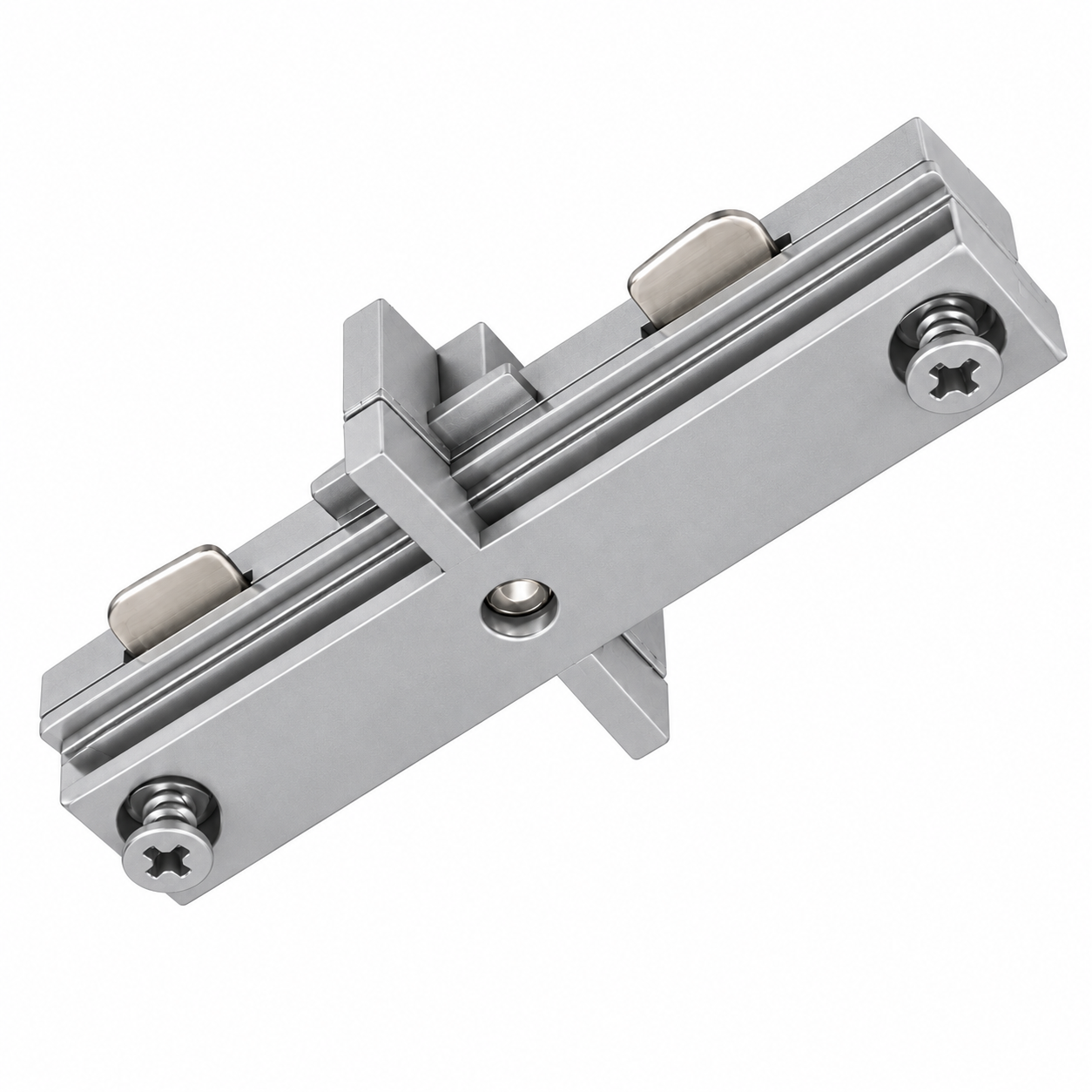

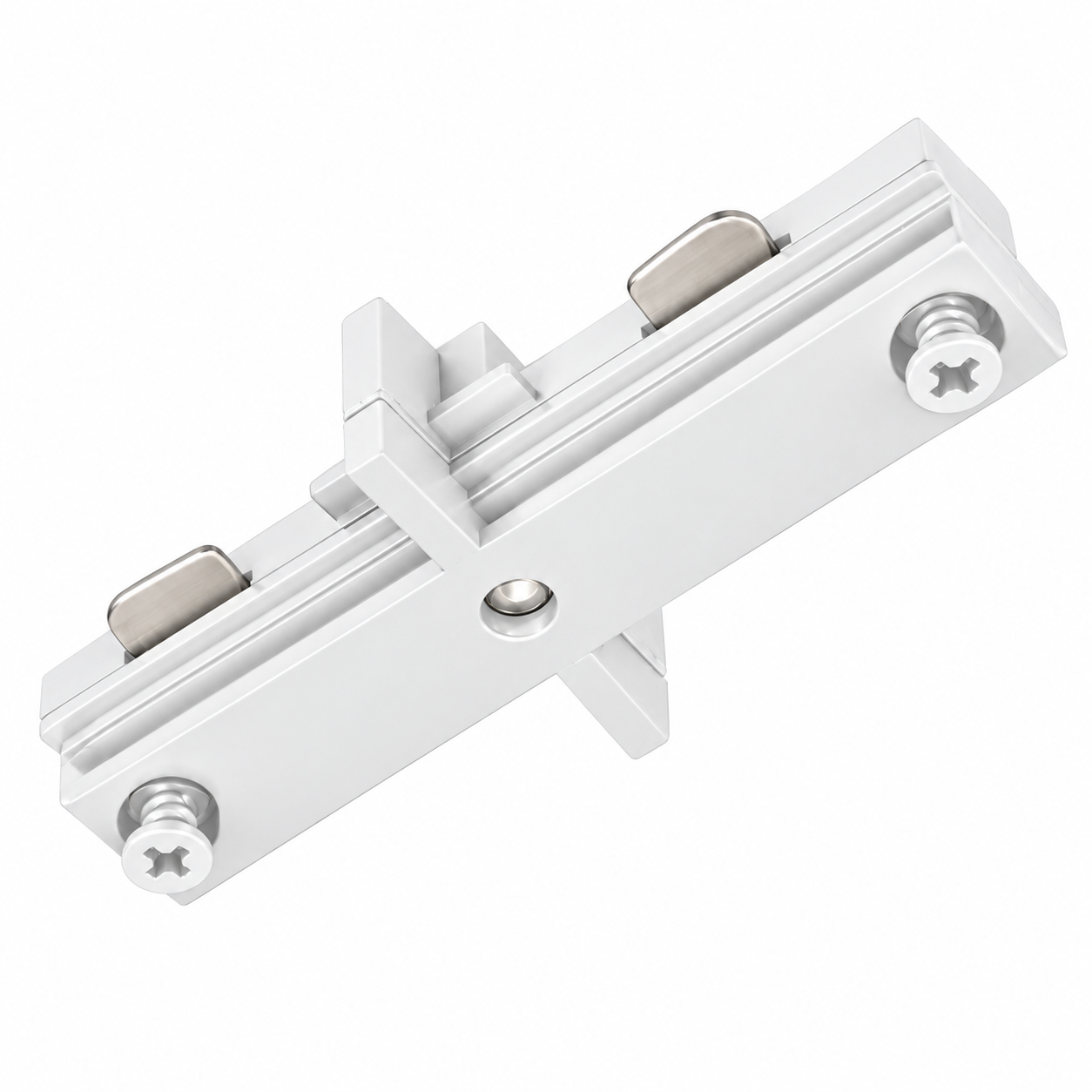

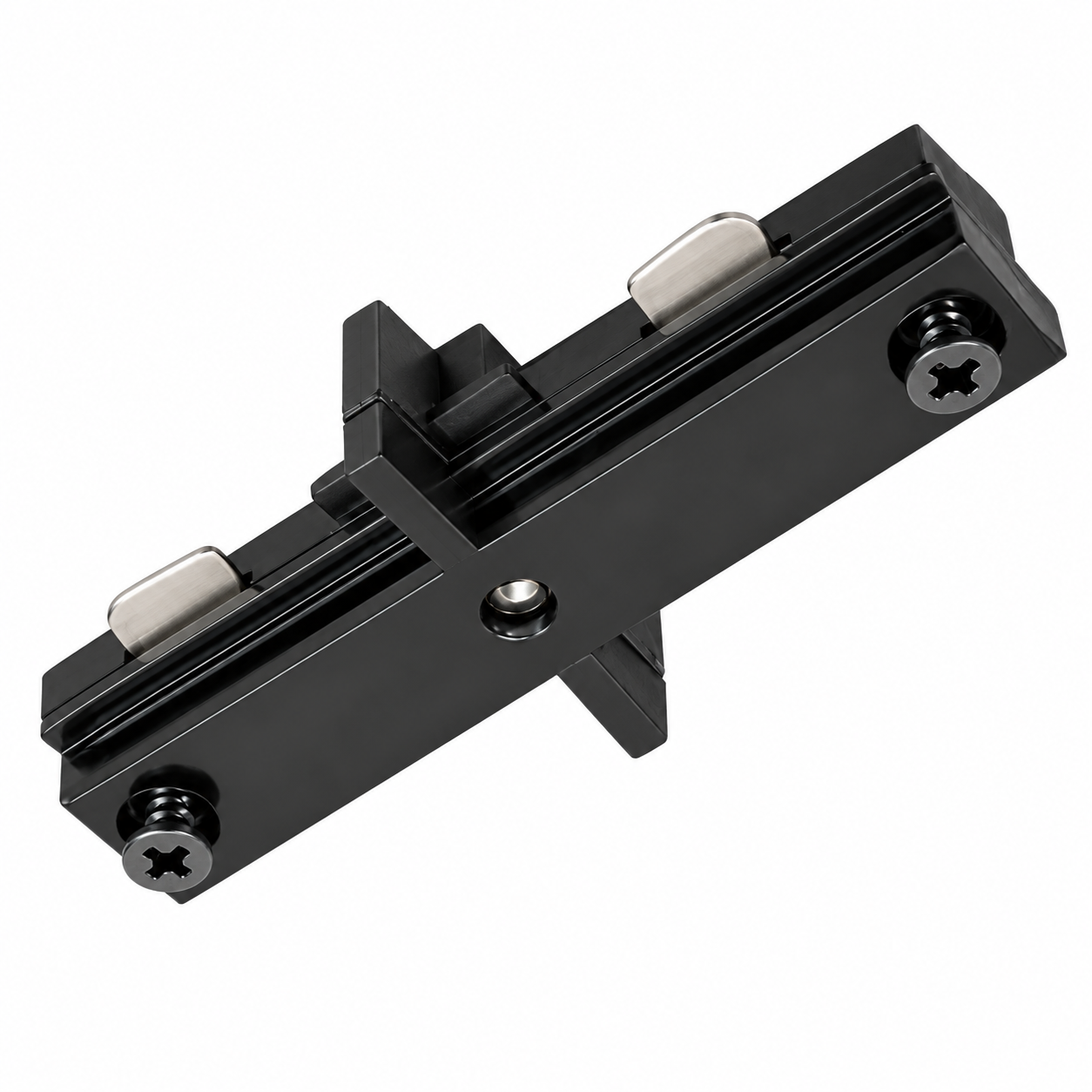

- Available in Matte Black, Matte White, and Matte Silver
- Suitable for dry-location installations
- UL Listed track fitting
Finish Options
| Finish | Appearance |
|---|---|
| Matte Black | Clean architectural black finish |
| Matte White | Minimal white finish for light ceilings and interiors |
| Matte Silver | Contemporary metallic silver finish |
Specifications
| Product Type | Mini Straight Track Joiner |
|---|---|
| Series | 120V Lighting Track Mini Straight Joiner Series |
| Function | Joins Two Track Sections End-to-End |
| Track Configuration | Straight / Inline |
| Input Voltage | 120V AC |
| Electrical Rating | 20A |
| Frequency | 60Hz |
| Overall Length | Approximately 3-1/8" (79 mm) |
| Added Track Length | Approximately 1/8" (3 mm) |
| Finish Options | Matte Black / Matte White / Matte Silver |
| Grounding | Integrated Ground Conductor |
| Securing Method | Set Screws |
| Location Rating | Dry Locations |
| Listing | UL Listed Track Fitting |
Installation
- Turn off power at the main electrical source before beginning installation.
- Remove the end cap or dead end from the track sections being connected.
- Loosen the set screws on the Mini Straight Joiner.

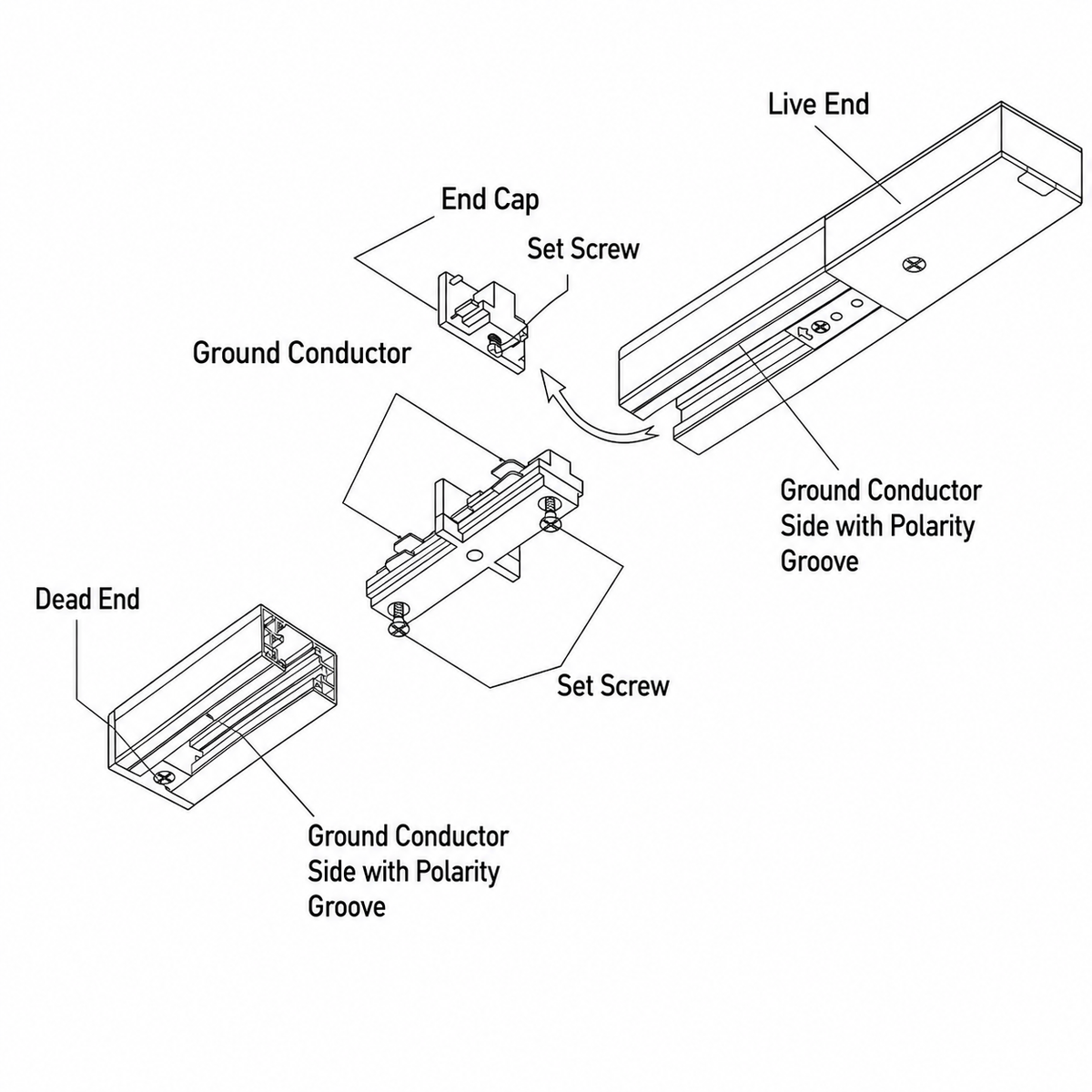

- Insert the joiner into the first track section with the ground conductor aligned with the track polarity groove.
- Insert the opposite side of the joiner into the second track section.
- Push the track sections together and tighten the set screws to secure the connection.
- Verify proper alignment, grounding, and polarity before restoring power.
Important: Track polarity must be maintained throughout the complete track run. The ground conductor on the Mini Straight Joiner must align with the ground conductor side and polarity groove of the track.
Applications
- Straight Track Extensions
- Retail Track Lighting
- Jewelry Stores & Showcases
- Showrooms
- Art Galleries
- Museums
- Restaurants & Hospitality
- Commercial Interiors
- Residential Track Lighting
- Architectural Lighting Systems
Why Choose the 120V Lighting Track Mini Straight Joiner Series?
The 120V Lighting Track Mini Straight Joiner Series provides a simple and discreet way to connect two track sections into one continuous straight run. Because most of the connector installs within the track sections, it creates a cleaner appearance than larger external connectors while adding only approximately 1/8" (3 mm) to the overall run.
With an integrated ground conductor, secure set-screw installation, 20A / 120V AC rating, and three coordinated finish options, the Mini Straight Joiner provides a reliable solution for extending compatible track lighting installations in retail, commercial, hospitality, gallery, and residential environments.
