The 120V Lighting Track Live End Feed Series is designed to provide electrical power at the beginning of a compatible track lighting run. The Live End Feed connects directly to the end of the track and provides a clean, secure connection between the building's electrical supply and the track system.

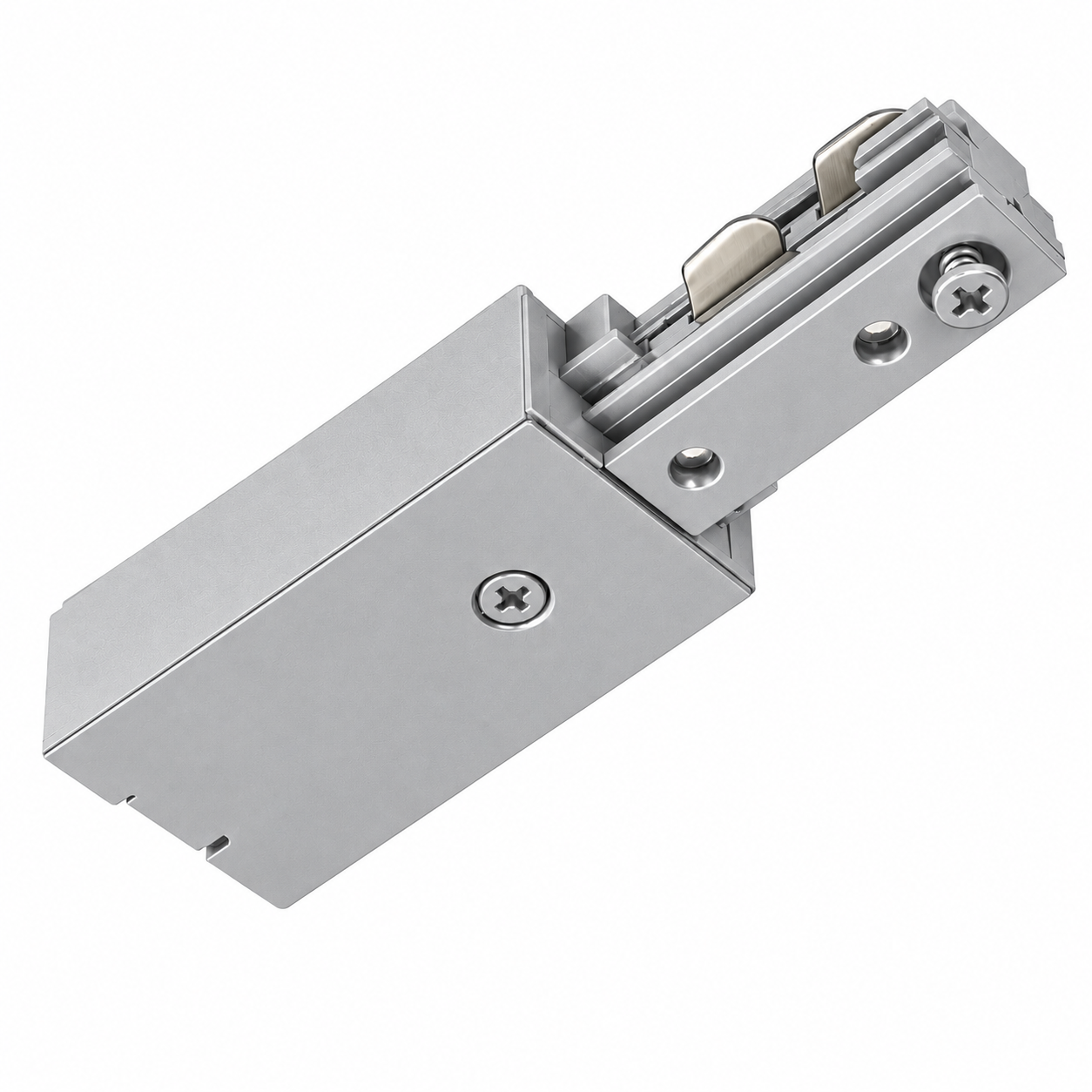

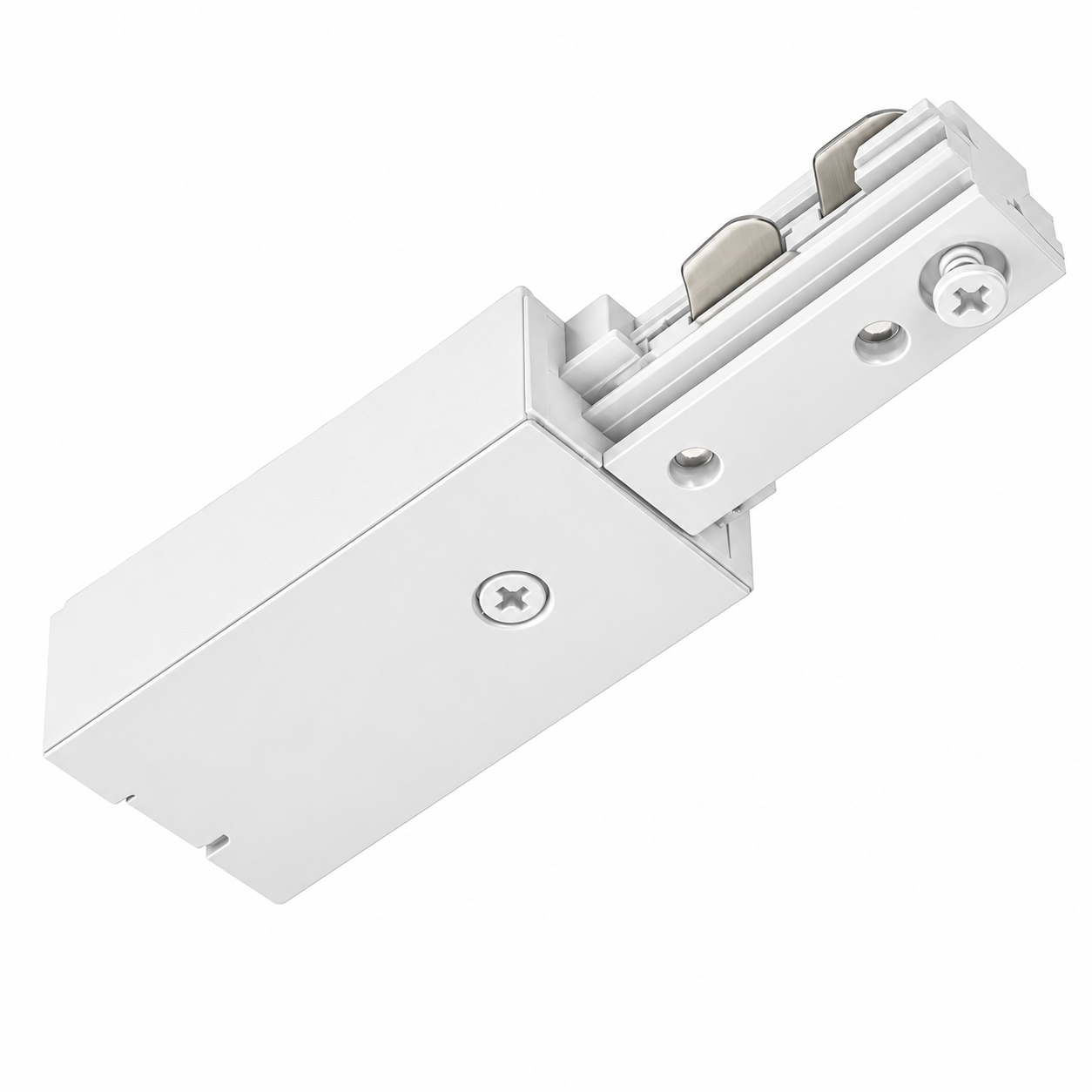

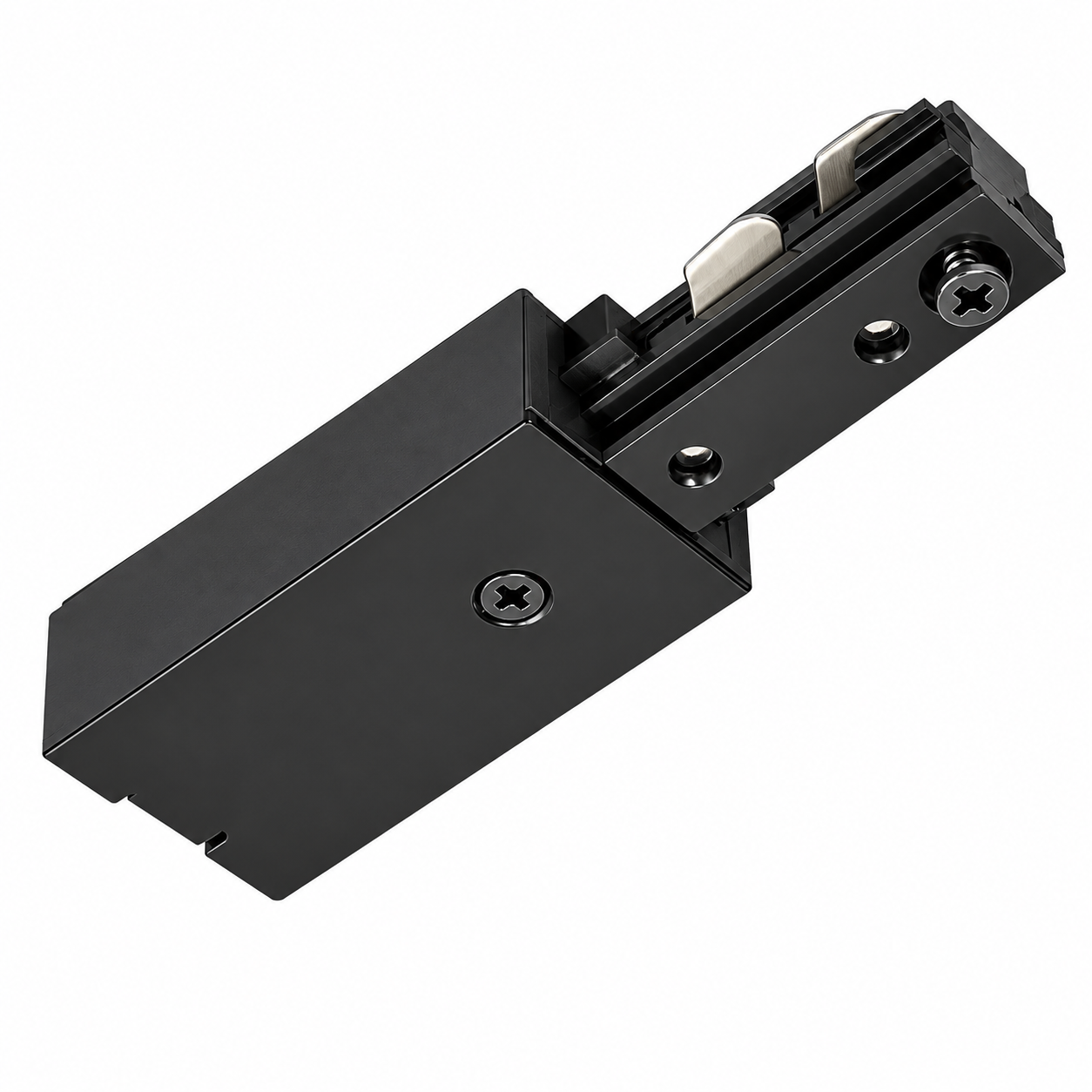

Designed for 120V AC track lighting systems, the Live End Feed features an integrated ground conductor and polarity-oriented installation for proper electrical connection. Its compact housing adds approximately 2-3/4" (70 mm) to the overall track run and is available in Black, Silver, and White finishes.
Features
- Provides electrical power at the start of a track lighting run
- Designed for compatible 120V AC track lighting systems
- 20A electrical rating
- Integrated ground conductor
- Polarity-oriented design for proper track installation
- Connects directly to the end of the lighting track
- Compact architectural housing
- Adds approximately 2-3/4" (70 mm) to the track run
- Approximately 4-1/4" (108 mm) overall length
- Available in Black, Silver, and White
- UL Listed track fitting
Finish Options
| Finish | Application |
|---|---|
| Black | Coordinates with black track systems |
| Silver | Coordinates with silver track systems |
| White | Coordinates with white track systems |
Specifications
| Product Type | Lighting Track Live End Feed |
|---|---|
| Series | 120V Lighting Track Live End Feed Series |
| Function | Supplies Power to the Beginning of a Track Run |
| Input Voltage | 120V AC |
| Frequency | 60Hz |
| Electrical Rating | 20A |
| Overall Length | Approximately 4-1/4" (108 mm) |
| Housing Length | Approximately 2-3/4" (70 mm) |
| Housing Width | Approximately 1-1/2" (38 mm) |
| Added Track Length | Approximately 2-3/4" (70 mm) |
| Finish Options | Black / Silver / White |
| Grounding | Integrated Ground Conductor |
| Installation Position | Beginning / Live End of Track Run |
| Listing | UL Listed Track Fitting |
Installation

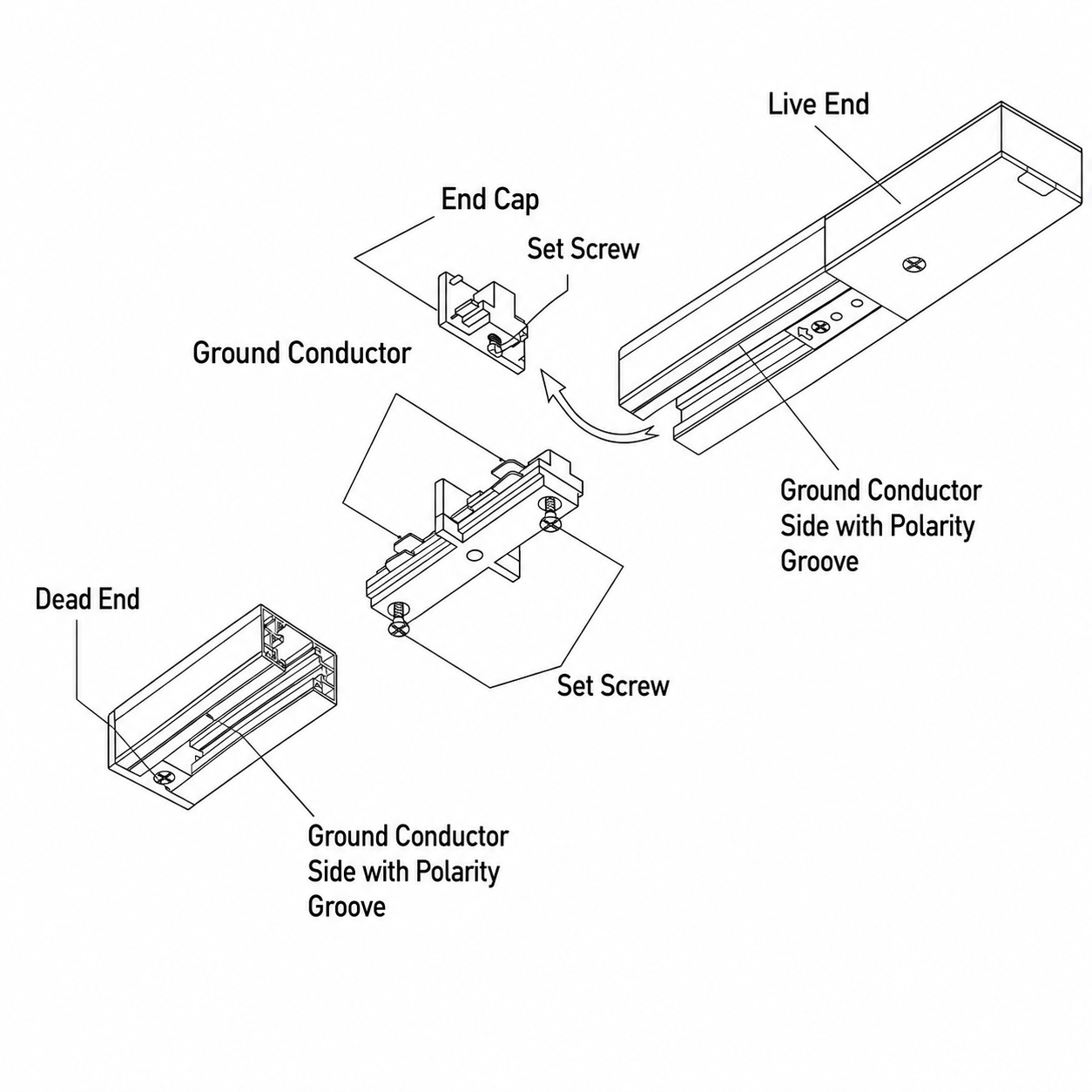

The Live End Feed installs at the beginning of the track run and connects the track system to the electrical supply. Proper polarity must be maintained during installation, with the ground conductor correctly aligned with the track's polarity groove.
Electrical connections are made inside the Live End Feed housing before the cover is replaced and secured. Once properly wired and installed, the fitting supplies 120V AC power to the connected track system.
Important: Turn off power at the main electrical source before installing or servicing the track or fitting. Installation should follow applicable electrical codes and the supplied installation instructions.
Applications
- Retail Track Lighting
- Jewelry Stores & Showrooms
- Art Galleries
- Museums
- Restaurants
- Hospitality Spaces
- Commercial Interiors
- Office Lighting
- Residential Track Lighting
- Architectural Lighting Systems
- Display & Accent Lighting
Why Choose the 120V Lighting Track Live End Feed Series?
The 120V Lighting Track Live End Feed Series provides the essential connection between the electrical supply and a compatible track lighting run. Its compact design integrates directly with the end of the track while maintaining proper power, grounding, and polarity throughout the system.
With a 120V AC / 20A electrical rating, UL Listed construction, and Black, Silver, and White finish options, the Live End Feed provides a clean and reliable solution for starting track lighting installations in retail, commercial, hospitality, gallery, showroom, and residential environments.
