120V Lighting Track L-Connector Series
120V Lighting Track L-Connector Series
Couldn't load pickup availability

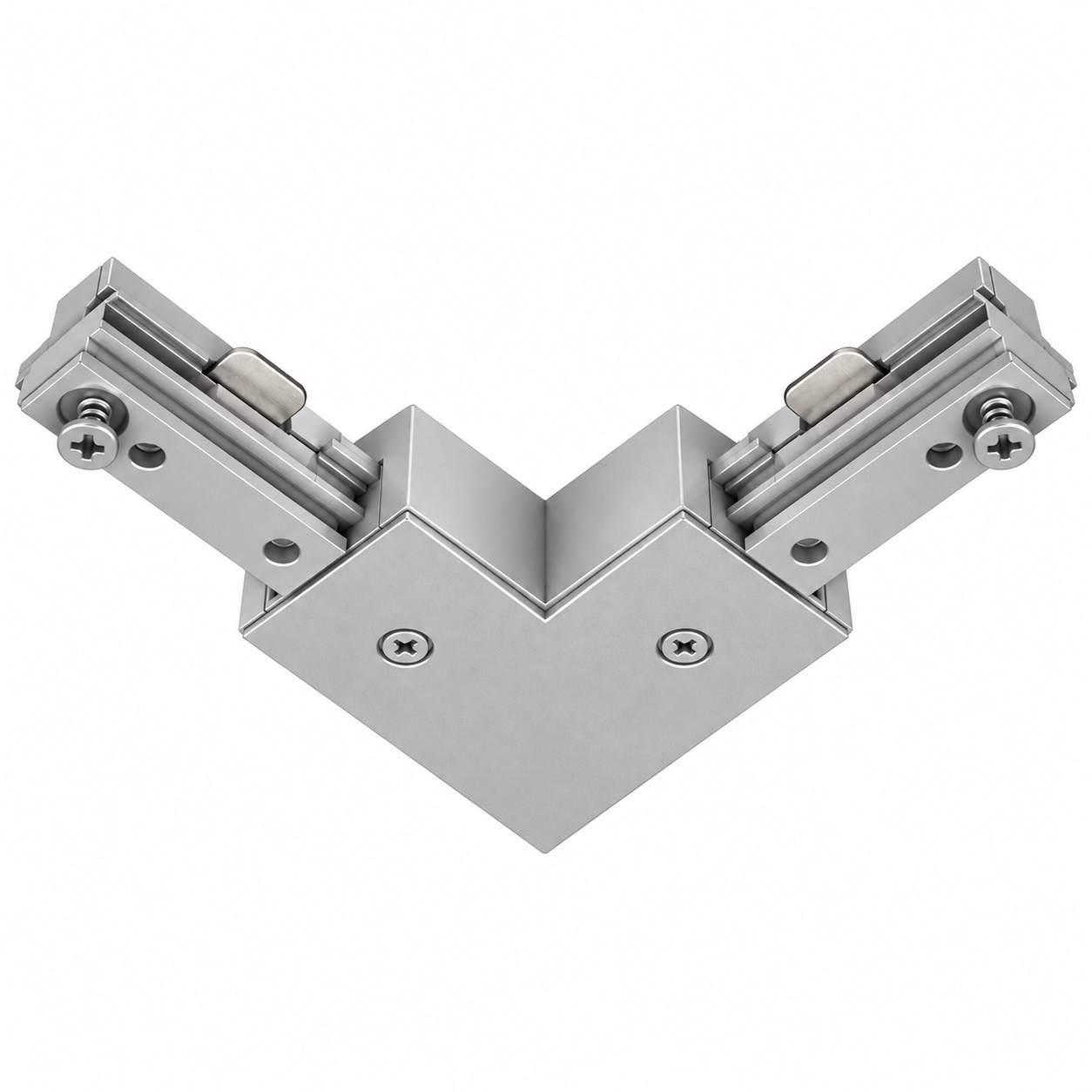

The 120V Lighting Track L-Connector Series is designed to connect two compatible track lighting sections at a 90° angle, providing a clean solution for creating corners and directional changes within a track lighting layout. Its compact L-shaped housing integrates directly with the track system for a streamlined architectural appearance.
Designed for 120V AC track lighting systems, the L-Connector is field adjustable for right-hand or left-hand polarity, allowing greater flexibility when planning track configurations. A removable cover is also included, allowing the connector to be configured for electrical feed applications when required.
Features
- Connects two lighting track sections at a 90° angle
- Designed for compatible 120V AC track lighting systems
- 20A electrical rating
- Field adjustable for right-hand or left-hand polarity
- Integrated ground conductor connections
- Maintains electrical continuity between adjoining track sections
- Set screws securely lock the connector to the track
- Removable cover provides access to electrical connections
- Can accommodate electrical feed-through configuration
- Compact L-shaped architectural design

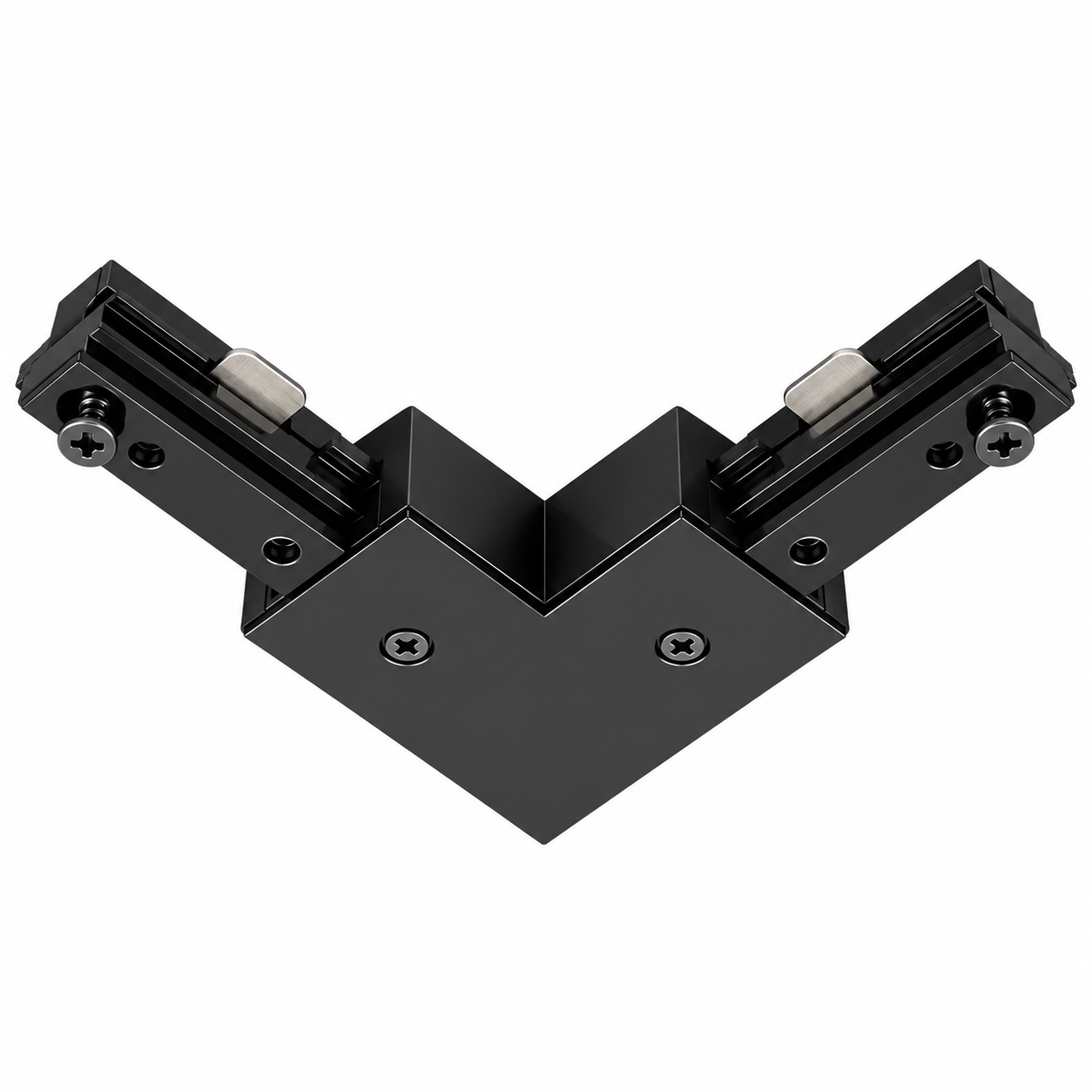

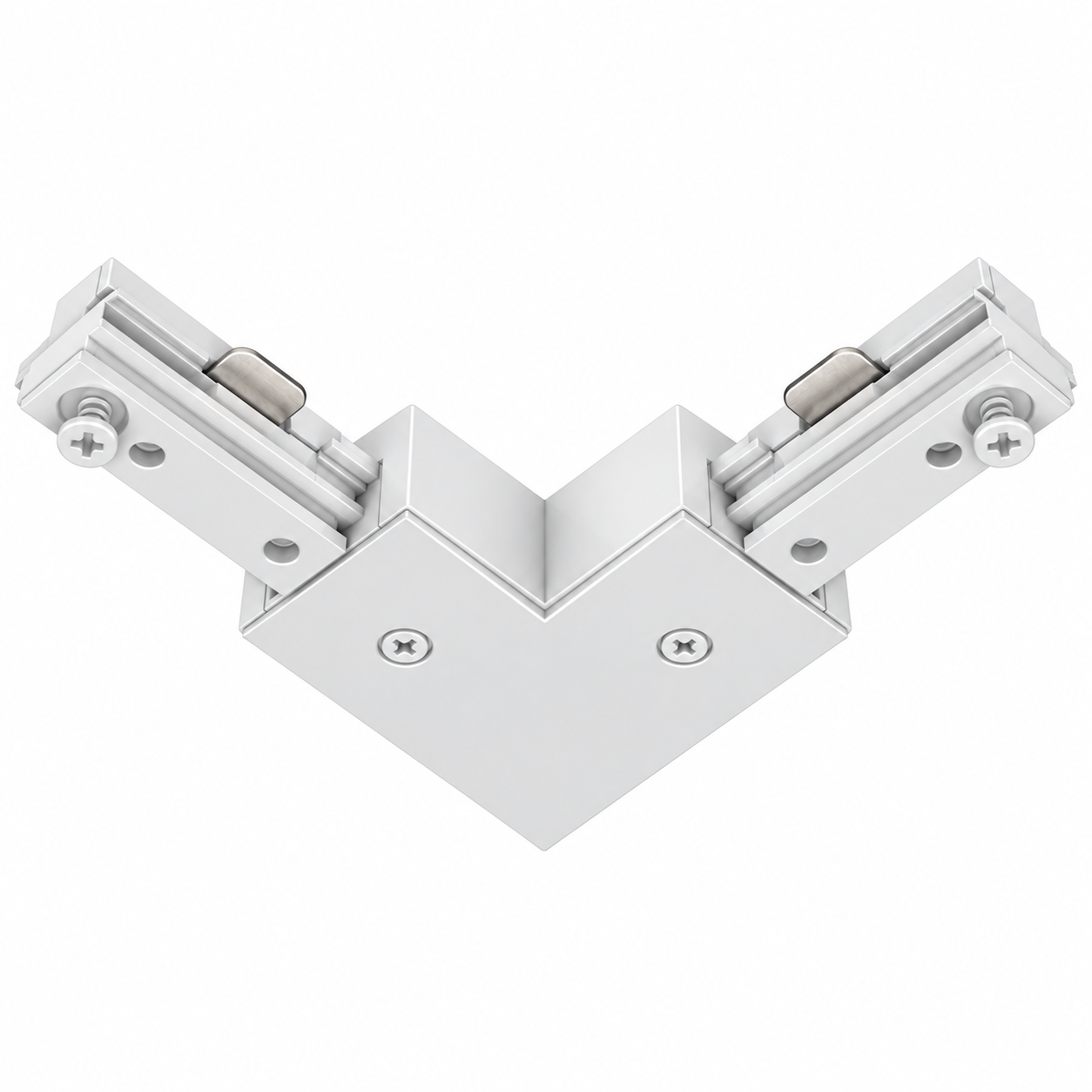

- Available in Black, Silver, and White
- UL Listed track fitting
Finish Options
| Finish | Application |
|---|---|
| Black | Coordinates with black track systems |
| Silver | Coordinates with silver track systems |
| White | Coordinates with white track systems |
Specifications
| Product Type | Lighting Track L-Connector |
|---|---|
| Series | 120V Lighting Track L-Connector Series |
| Function | Connects Two Track Sections at 90° |
| Configuration | L-Shaped / 90° Corner |
| Input Voltage | 120V AC |
| Frequency | 60Hz |
| Electrical Rating | 20A |
| Overall Length | Approximately 4-1/4" (108 mm) |
| Overall Width | Approximately 2-3/4" (70 mm) |
| Polarity Configuration | Field Adjustable – Right or Left Hand |
| Finish Options | Black / Silver / White |
| Grounding | Integrated Ground Conductor Connections |
| Securing Method | Set Screws |
| Listing | UL Listed Track Fitting |
Polarity & Installation
The L-Connector can be configured for either a right-hand or left-hand 90° turn. Proper polarity must be maintained throughout the installation by correctly positioning the connector's ground conductor tabs with the grounding conductor side of each track section.
To install, remove the connector cover to access the terminal and set screws, configure the connector for the required track orientation, insert each end into the adjoining track sections, and tighten the set screws to secure the connection. The cover is then reinstalled after all connections have been completed.
Important: Turn off power at the main electrical source before installing or servicing the track or connector. Proper grounding and track polarity must be maintained throughout the complete track run.
Applications
- 90° Track Lighting Corners
- L-Shaped Track Layouts
- Retail Track Lighting
- Jewelry Stores & Showrooms
- Art Galleries
- Museums
- Restaurants & Hospitality
- Commercial Interiors
- Office Lighting
- Residential Track Lighting
- Architectural Lighting Systems
- Display & Accent Lighting
Why Choose the 120V Lighting Track L-Connector Series?
The 120V Lighting Track L-Connector Series provides a practical solution for creating 90° corners and L-shaped track configurations. Its field-adjustable right- or left-hand polarity allows the connector to accommodate different track orientations while maintaining proper electrical continuity and grounding.
With a 120V AC / 20A electrical rating, compact architectural design, UL Listed construction, and Black, Silver, and White finish options, the L-Connector provides a flexible solution for creating professional track lighting layouts in retail, commercial, hospitality, gallery, showroom, and residential environments.
