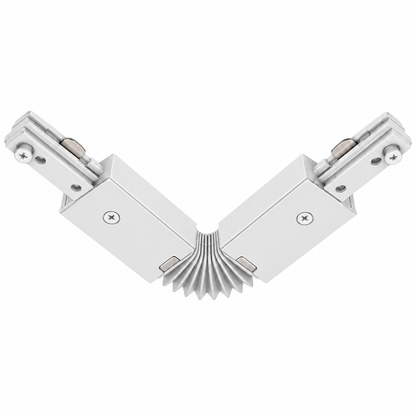

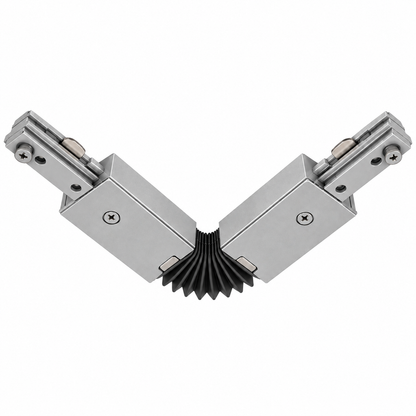

120V Lighting Track Flexible Connector Series

The 120V Lighting Track Flexible Connector Series is designed to connect two compatible track lighting sections at adjustable angles, providing a flexible solution for directional changes, angled layouts, and pitched ceiling installations. The flexible center section allows adjoining tracks to be positioned at any angle up to 90°.

Designed for 120V AC track lighting systems, the Flexible Connector maintains electrical continuity between connected track sections while allowing greater freedom in architectural track layouts. It can also be configured for use as a power feed and is available in Black, Silver, and White finishes.

Features

• Connects two lighting track sections at adjustable angles
• Adjustable from straight configurations up to 90°
• Ideal for pitched and angled ceiling applications
• Designed for compatible 120V AC track lighting systems
• 20A electrical rating
• Flexible center section accommodates directional changes
• Maintains electrical continuity between connected track sections
• Integrated grounding connections
• Can be used as a power feed
• Set screws securely lock the connector to each track section

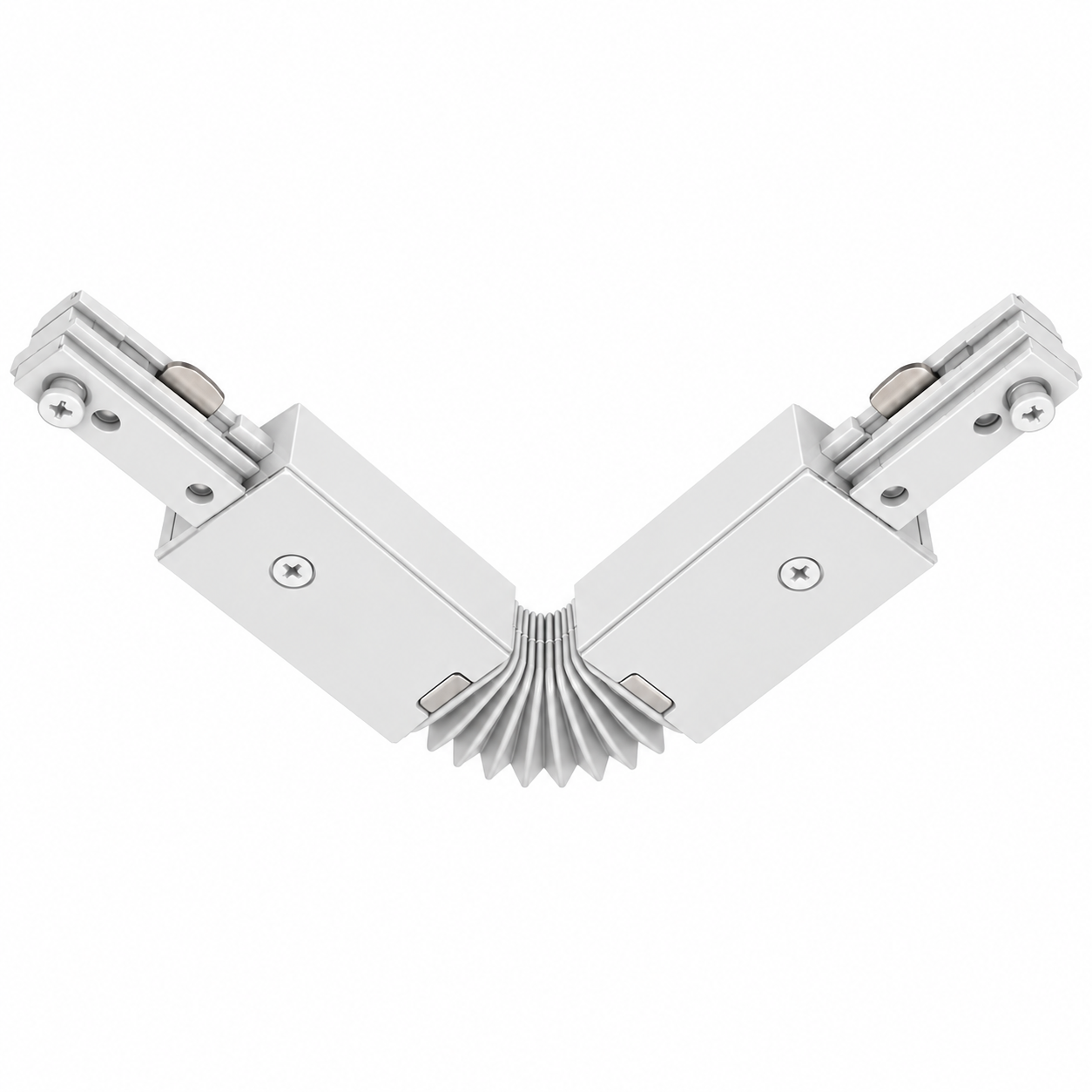

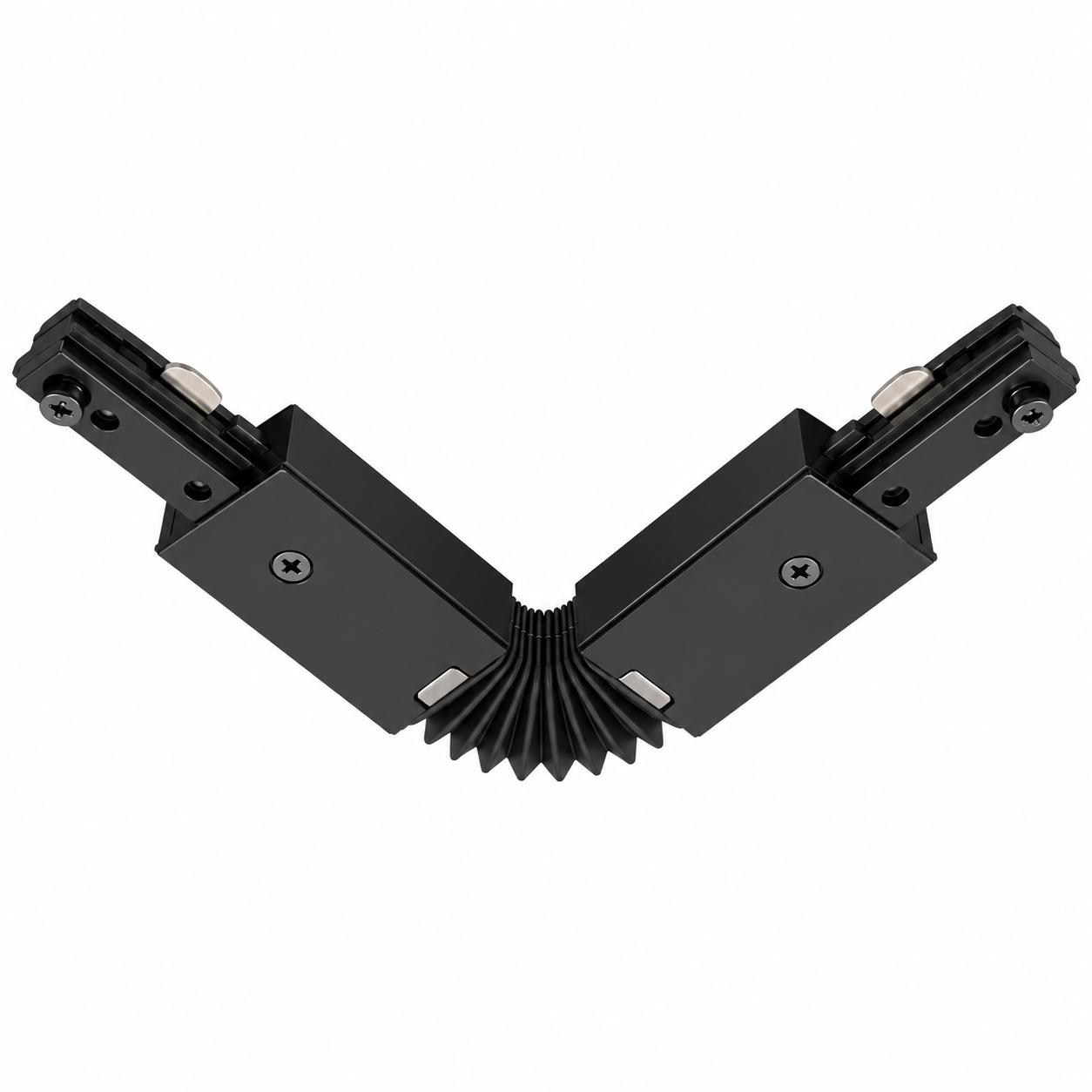

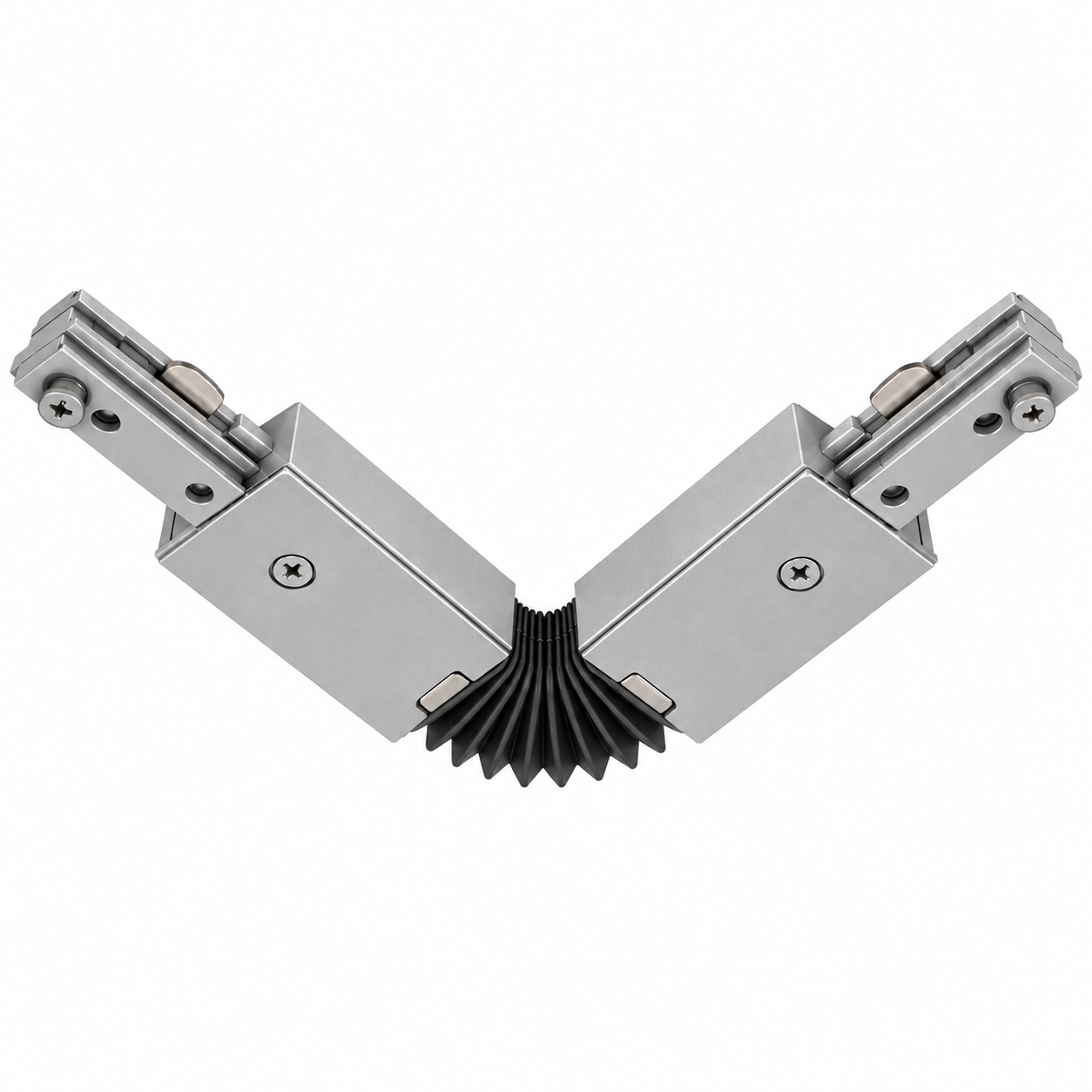

• Available in Black, Silver, and White
• UL Listed track fitting

Finish Options

Specifications

Flexible Track Configuration

The Flexible Connector allows two track sections to be joined at any angle up to 90°, making it particularly useful when a track lighting system needs to transition between different ceiling planes or accommodate an angled architectural layout.

Unlike a fixed 90° connector, the flexible center section allows the angle between the two track sections to be adjusted according to the installation. This makes the connector especially suitable for pitched ceilings, sloped ceilings, angled track runs, and custom track configurations.

Installation

To install, turn off power at the main electrical source and loosen the set screws on the connector. Slide the adjoining track sections onto each end of the Flexible Connector, position the tracks at the required angle, and tighten the set screws to secure the connection.

The Flexible Connector can also be configured as an electrical power feed when required by the track layout.

Important: Proper grounding and track polarity must be maintained throughout the complete track system. Turn off power at the main electrical source before installing or servicing any track or connector.

Applications

• Pitched Ceiling Track Lighting
• Sloped Ceiling Installations
• Angled Track Lighting Layouts
• Custom Architectural Track Configurations
• Retail Track Lighting
• Jewelry Stores & Showrooms
• Art Galleries
• Museums
• Restaurants & Hospitality
• Commercial Interiors
• Residential Track Lighting
• Display & Accent Lighting

Why Choose the 120V Lighting Track Flexible Connector Series?

The 120V Lighting Track Flexible Connector Series provides greater freedom when designing track lighting layouts that cannot be accomplished with fixed straight or 90° connectors. Its flexible center allows two track sections to connect at any angle up to 90°, making it ideal for pitched ceilings and custom architectural configurations.

With a 120V AC / 20A electrical rating, integrated power-feed capability, UL Listed construction, and Black, Silver, and White finish options, the Flexible Connector provides a versatile solution for professional track lighting installations in retail, commercial, hospitality, gallery, showroom, and residential environments.
