18W Mini Slim Panel Series - 1' × 1'
18W Mini Slim Panel Series - 1' × 1'
Couldn't load pickup availability

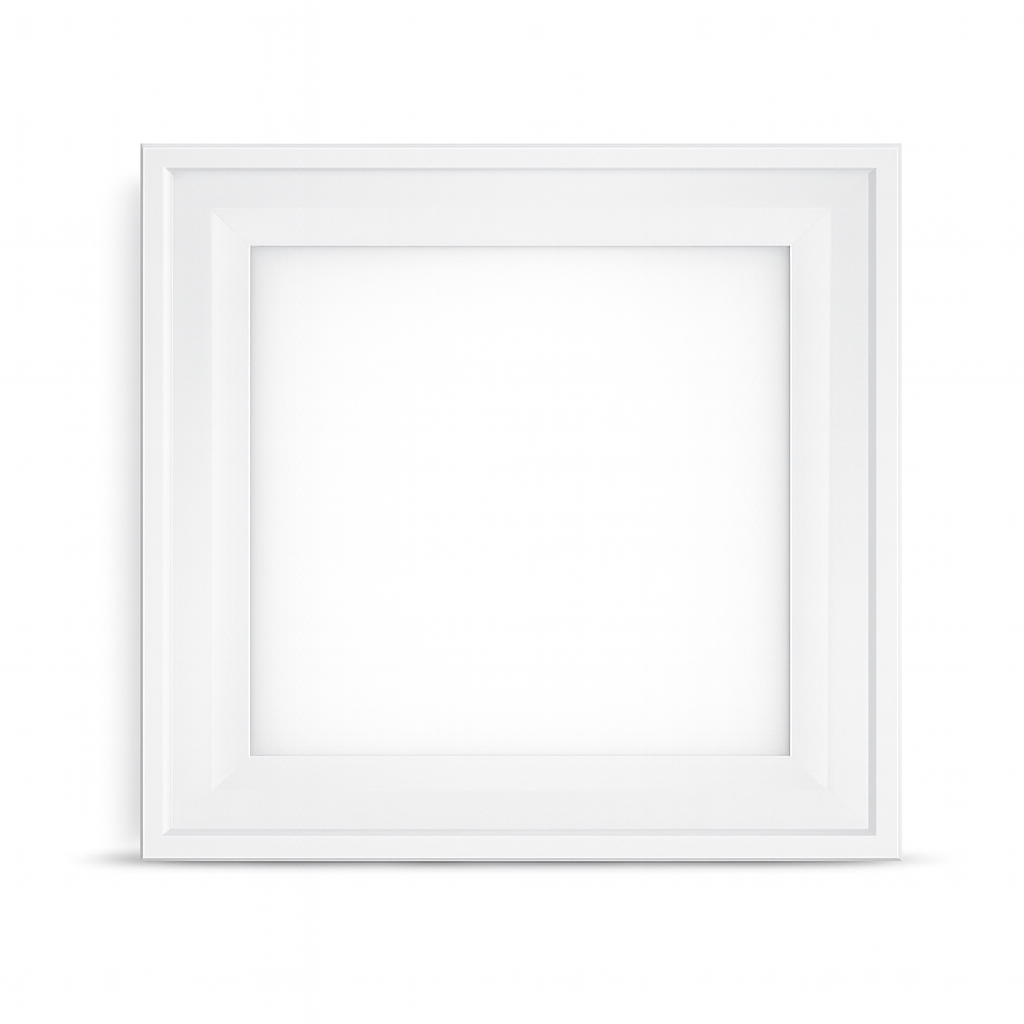

The 18W 1' × 1' Mini Slim Panel Series delivers 1,620 lumens of soft, evenly distributed illumination in a compact, ultra-slim surface-mounted format. Designed for modern residential and commercial interiors, its low-profile construction provides a clean architectural appearance while delivering efficient general lighting.
Available in 3000K, 4000K, and 5000K color temperature options, the Mini Slim Panel can accommodate a variety of interior environments. A wide 120° beam angle provides broad illumination, while 120V TRIAC dimming allows the light level to be adjusted as needed.
Features
- 18W power consumption
- Produces 1,620 lumens
- Available in 3000K / 4000K / 5000K
- 120° wide flood beam
- CRI 80
- 120V TRIAC dimmable
- Compact 1.0' × 1.0' format
- Ultra-slim, low-profile design
- Surface-mounted installation
- White trim finish
- Power Factor >0.9
- Mercury-free design
- Energy-efficient LED illumination
- Rated for approximately 50,000 hours
Color Temperature Options
| Color Temperature | Description |
|---|---|
| 3000K | Soft White |
| 4000K | Cool White |
| 5000K | Bright White |
Specifications
| Product Type | Slim Surface-Mount LED Panel |
|---|---|
| Series | Mini Slim Panel Series |

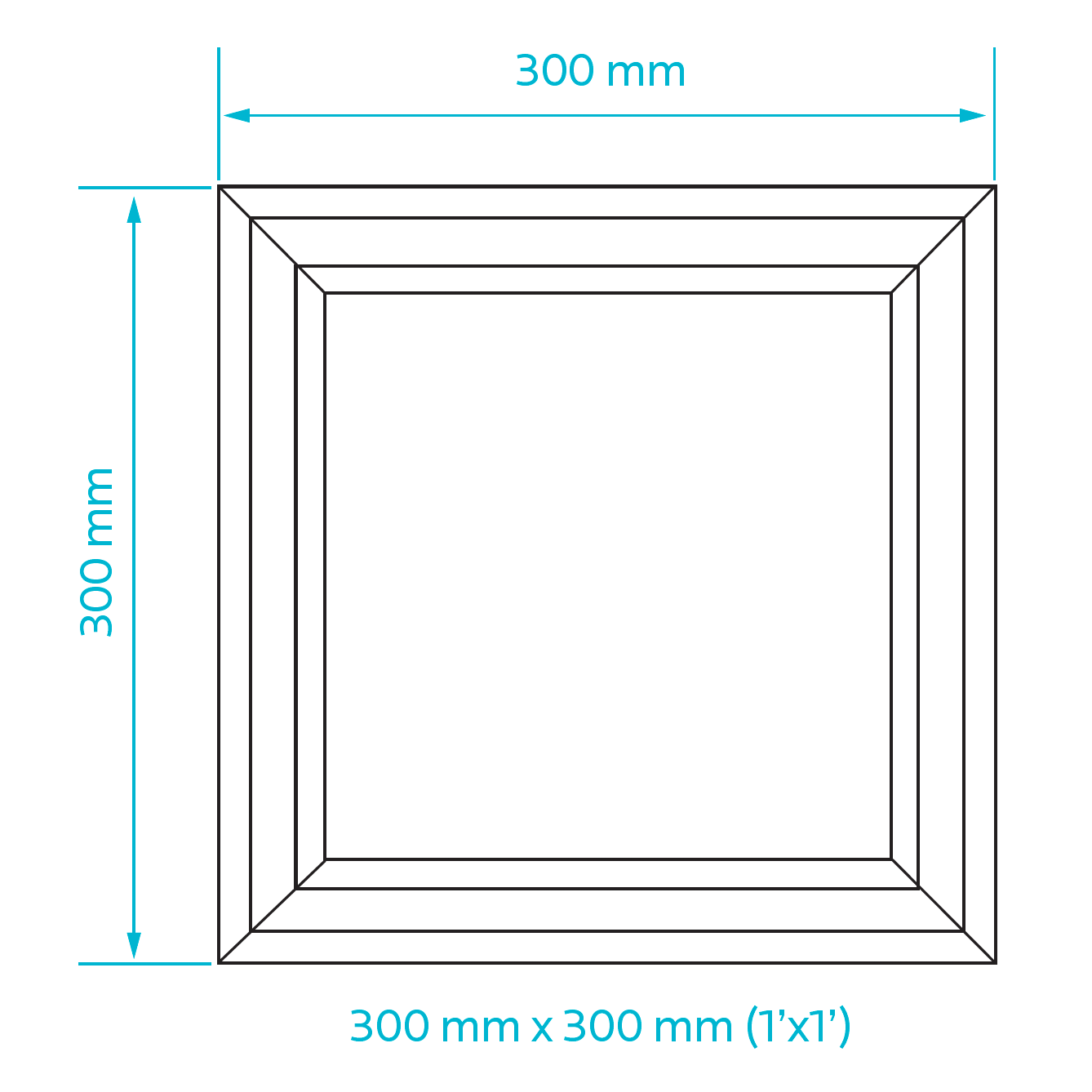

| Panel Size | 1.0' × 1.0' |
| Power | 18W |
| Light Output | 1,620 lm |
| Color Temperature | 3000K / 4000K / 5000K |
| CRI | 80 |
| Beam Angle | 120° Wide Flood |
| Input Voltage | 120V |
| Dimming | TRIAC Dimmable |
| Power Factor | >0.9 |
| Mounting | Surface Mount |
| Finish | White Trim |
| Mercury | Mercury-Free |
| Rated Lifespan | Approximately 50,000 Hours |
Applications
- Kitchens
- Bathrooms
- Hallways & Corridors
- Hospitality Spaces
- Offices
- Residential Interiors
- Commercial Interiors
- General Lighting
Why Choose the Mini Slim Panel Series?
The 18W 1.0-Foot × 1.0-Foot Mini Slim Panel Series delivers 1,620 lumens through a broad 120° beam angle, providing soft and evenly distributed illumination from a compact surface-mounted fixture. Its ultra-slim profile and White trim provide a clean appearance for modern residential and commercial interiors.
With three available color temperatures, 120V TRIAC dimming, CRI 80, Power Factor >0.9, mercury-free construction, and an approximately 50,000-hour rated lifespan, the Mini Slim Panel provides an efficient lighting solution for kitchens, bathrooms, hallways, hospitality spaces, offices, and other interior applications.
