110W RetroFit Falcon 180 Lamp Series
110W RetroFit Falcon 180 Lamp Series
Couldn't load pickup availability
The 110W RetroFit Falcon 180 Lamp Series provides powerful, high-output LED illumination for parking, commercial, industrial, and large-area retrofit applications. Producing approximately 14,300 lumens while consuming only 110 watts, the Falcon provides an efficient replacement for traditional 400W HPS and HQL lamps.
Powered by 168 LG 3030 LEDs, the RetroFit Falcon delivers approximately 130 lm/W with broad 180° light distribution. Its fold-out body allows the LED panels to extend after installation, providing wide illumination from compatible enclosed fixtures.
Features
- 110W LED power consumption
- Produces 14,300 ±100 lumens
- Replaces traditional 400W HPS / HQL lamps
- 168 LG 3030 LEDs
- Approximately 130 lm/W
- 180° beam angle
- Available in 3000K, 4000K, 5000K & 6000K
- CRI ≥80
- Power factor ≥0.9
- 100–277V AC, 50–60Hz
- E39 mogul base
- IP64 rated
- Flame-retardant construction
- Suitable for totally enclosed fixtures
- Non-dimmable
- Operating temperature from -40°F to 140°F (-40°C to 60°C)
- CE, RoHS, UL, DLC 4.0, cUL, LM79 & TM21 listed/certified
- 5-year warranty
Color Temperature Options
| Color Temperature | Description |
| 3000K | Warm White |
| 4000K | Neutral White |
| 5000K | Cool White |
| 6000K | Bright White |
Specifications
| Product Type | LED Retrofit Lamp |
| Series | RetroFit Falcon 180 Lamp Series |
| Model Number | RF180F-110W |
| Power | 110W |
| Light Output | 14,300 ±100 lm |
| Efficacy | Approximately 130 lm/W |
| LED Source | LG 3030 |
| LED Quantity | 168 LEDs |
| Input Voltage | 100–277V AC, 50–60Hz |
| Base Type | E39 |
| Color Temperatures | 3000K / 4000K / 5000K / 6000K |
| CRI | ≥80 |
| Power Factor | ≥0.9 |
| Beam Angle | 180° |
| Dimming | Non-Dimmable |
| IP Rating | IP64 |

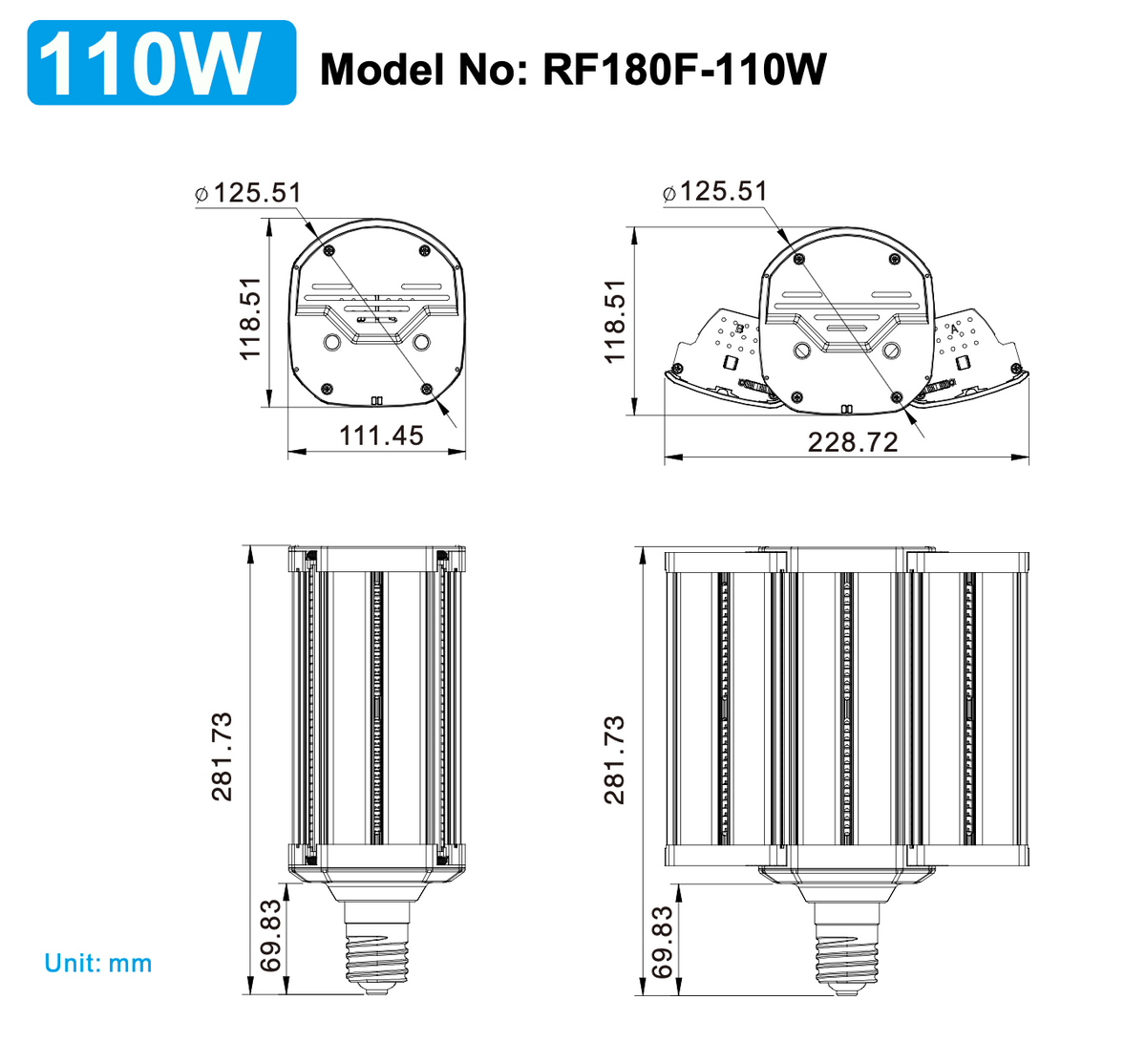

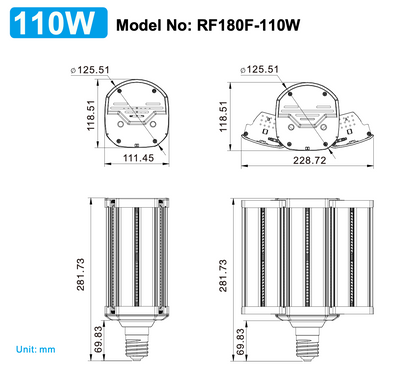

| Dimensions | Ø4.4" × 11.1" (Ø111 × 281 mm) |
| Net Weight | 3.66 lbs (1.66 kg) |
| Operating Temperature | -40°F to 140°F (-40°C to 60°C) |
| Traditional Replacement | 400W HPS / HQL |
| Warranty | 5 Years |
Applications
- Parking Lot Fixtures
- Large Area Lighting
- Commercial Exterior Lighting
- Industrial Lighting
- Enclosed Retrofit Fixtures
- HPS / HQL Retrofit Applications
Installation Notes
- The lamp body must be fully extended with both sides opened before operation.
- Remove or bypass the existing ballast before installation.
- Do not use with dimmers.
- Do not install where the lamp will be directly exposed to water.
Why Choose the 110W RetroFit Falcon 180?
The 110W RetroFit Falcon 180 produces approximately 14,300 lumens while replacing traditional 400W HPS/HQL lamps. Its 168 LG 3030 LEDs, wide 180° beam, fold-out construction, multiple CCT options, and IP64 rating provide a high-output solution for demanding parking and exterior lighting retrofit applications.
