Diamond Brite LEDs
10W G24 Plug Light Series
10W G24 Plug Light Series
Couldn't load pickup availability

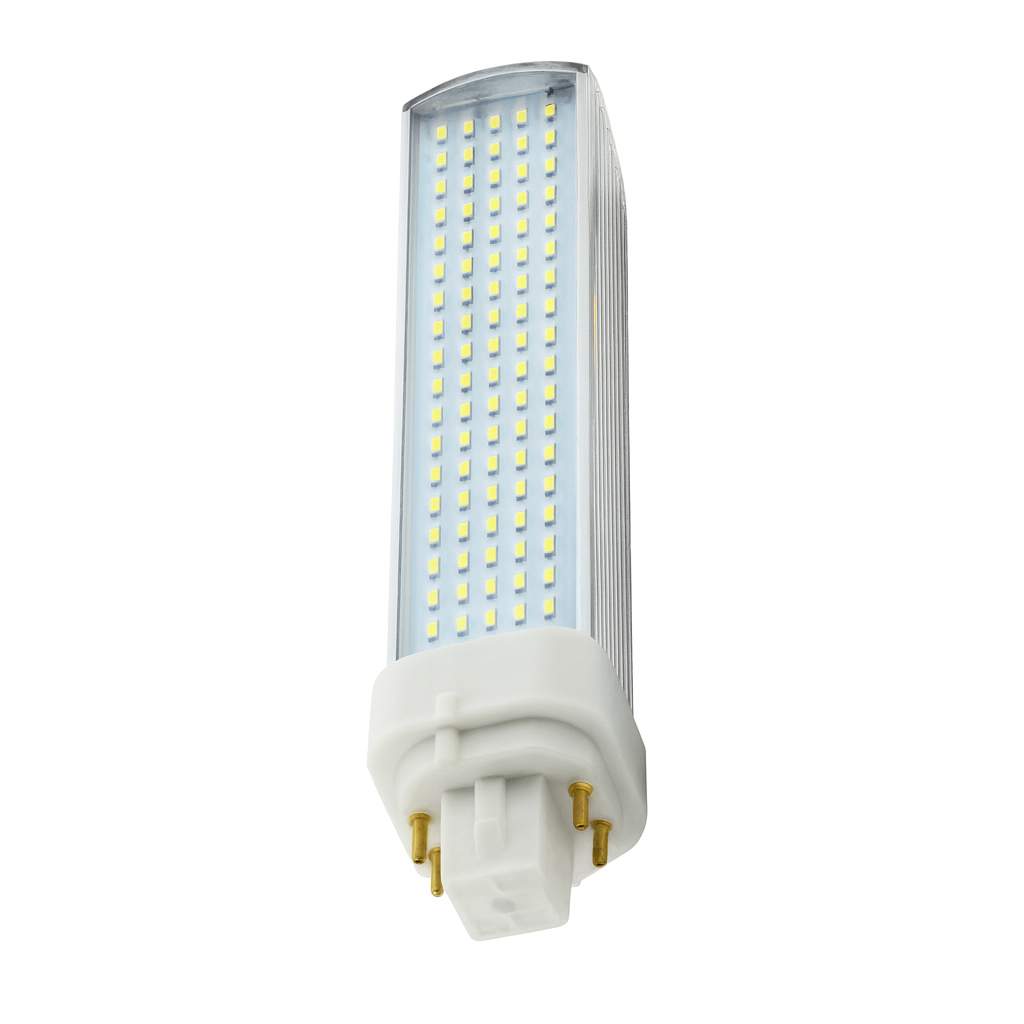

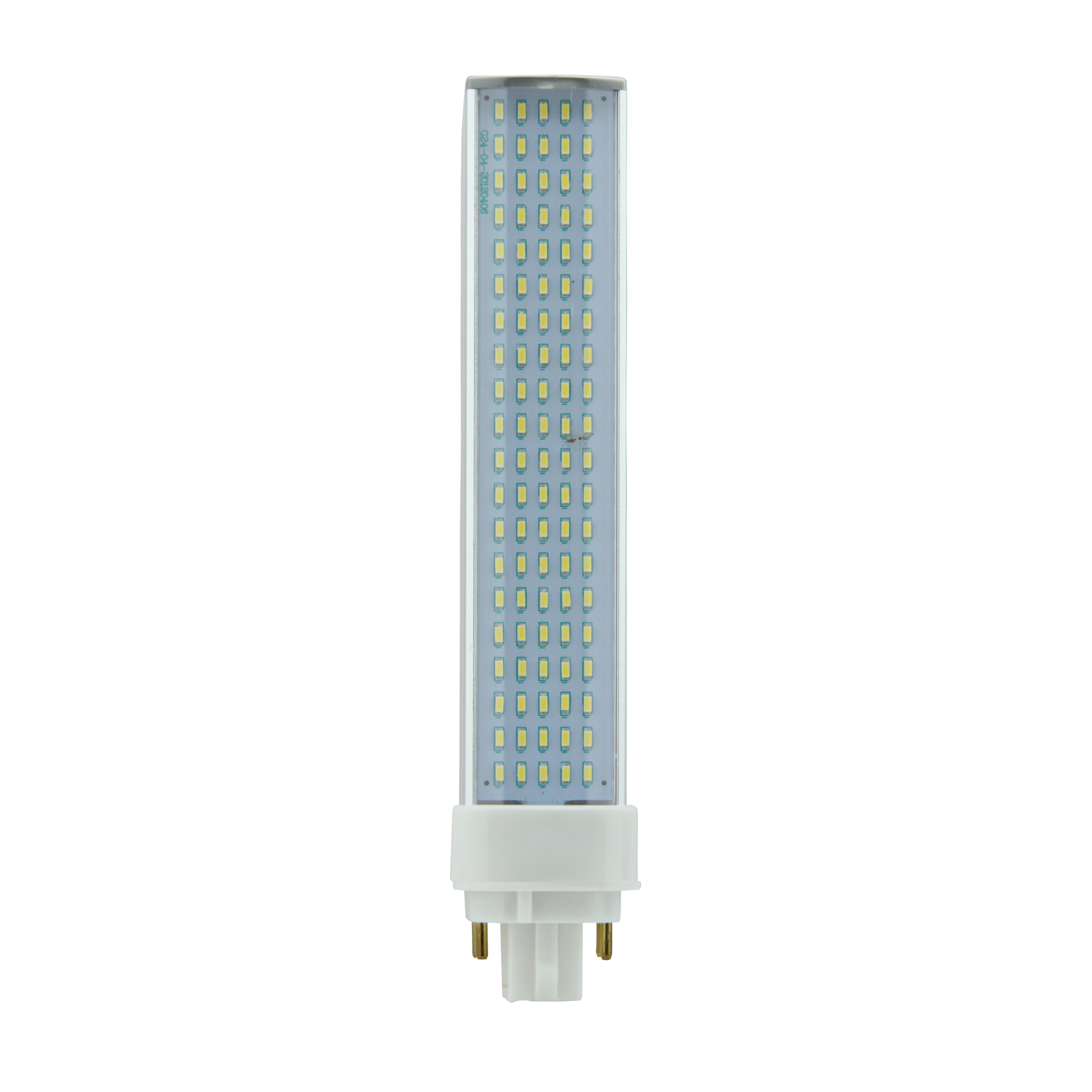

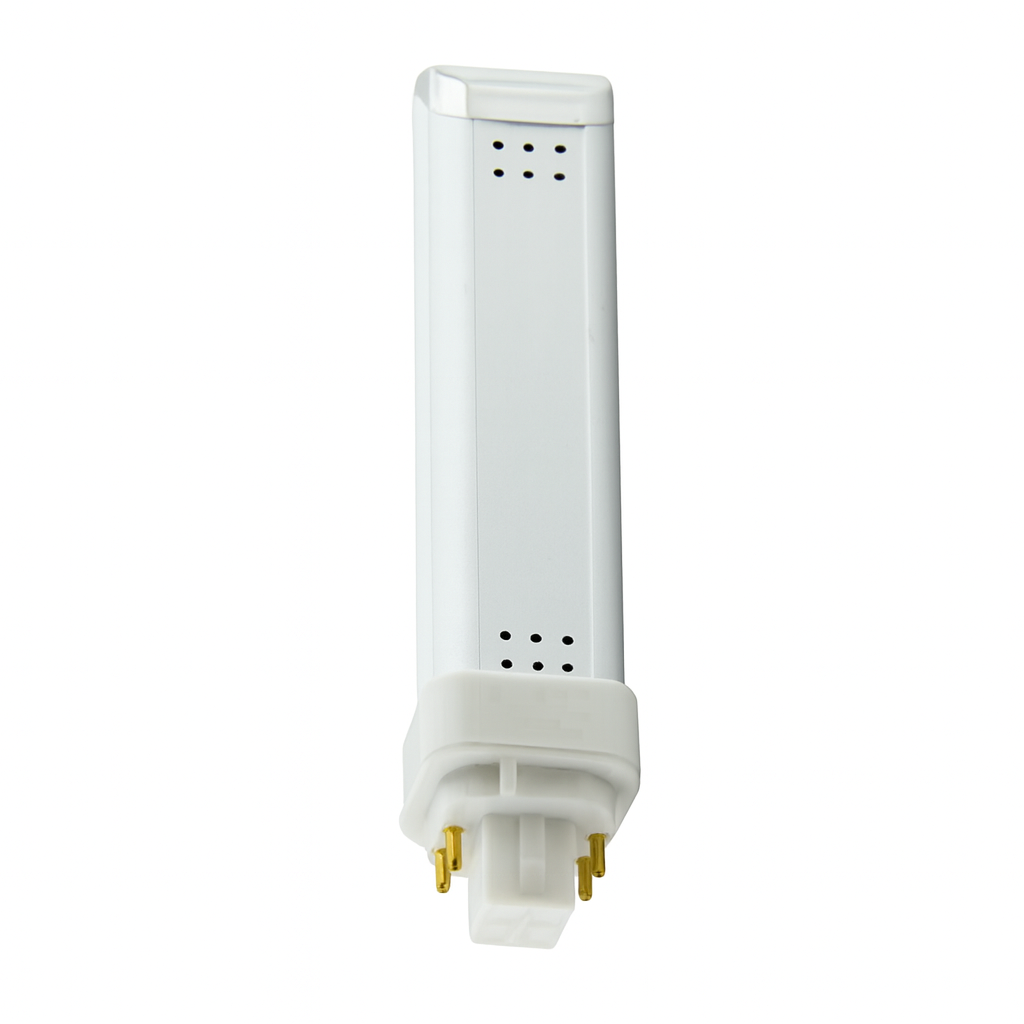

The 10W G24 Plug Light Series delivers powerful, energy-efficient illumination in a compact plug-in lamp design. Producing 1,000 lumens while consuming only 10 watts, the G24 Plug Light provides an efficient alternative to traditional 80W incandescent, halogen, or CFL lighting.
Featuring BridgeLux LED technology, a built-in isolated driver, and durable aluminum and PVC construction, this lamp provides reliable performance with a wide 120° beam angle for residential and commercial lighting applications.
Features
- 10W LED replaces up to 80W incandescent, halogen, or CFL lighting
- Produces 1,000 lumens
- BridgeLux LED technology
- 120° wide beam angle for broad, even illumination
- Available in 3000K, 4000K, 5000K & 6500K
- CRI >80 for accurate color rendering
- Wide-range 100–240V AC, 50/60Hz operation
- G24-Q2 plug-in base
- Built-in isolated LED driver
- Power factor >0.90
- Non-dimmable
- Durable aluminum and PVC construction
- Brushed Aluminum finish
- Approximately 50,000-hour rated life
- UL, CE, RoHS & FCC certified
- 2-year warranty
Color Temperature Options
| Color Temperature | Description | Lumens |
|---|---|---|
| 3000K | Warm White | 1,000 lm |
| 4000K | Soft White | 1,000 lm |
| 5000K | Pure White | 1,000 lm |
| 6500K | Bright White | 1,000 lm |
Specifications
| Product Type | G24 Plug-In LED Lamp |
|---|---|
| Series | G24 Plug Light Series |
| Power | 10W |
| Equivalent Wattage | Up to 80W Incandescent / Halogen / CFL |
| Light Output | 1,000 lm |
| Input Voltage | 100–240V AC, 50/60Hz |
| Lamp Base | G24-Q2 Plug-In Base |
| LED Source | BridgeLux LED |
| Driver | Built-In Isolated Driver |
| Color Temperatures | 3000K / 4000K / 5000K / 6500K |
| CRI | >80 |
| Beam Angle | 120° |
| Power Factor | >0.90 |
| Dimming | Non-Dimmable |
| Housing Material | Aluminum + PVC |
| Finish | Brushed Aluminum |
| Diameter | 1.4" (35 mm) |
| Height | 6.9" (174 mm) |
| Weight | 0.20 lbs |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Rated Life | Approximately 50,000 Hours |
| Certifications | UL / CE / RoHS / FCC |
| Warranty | 2 Years |
Applications
- Recessed Can Fixtures
- Pendant Lighting
- Ceiling Lighting
- Residential Interiors
- Commercial Interiors
- Retail Spaces
- Hotels & Hospitality
- General-Purpose Lighting
Why Choose the G24 Plug Light Series?
The G24 Plug Light Series produces 1,000 lumens using only 10W, providing an energy-efficient alternative to traditional 80W lighting. Its wide 120° beam angle provides broad, uniform illumination for a variety of residential and commercial applications.
With BridgeLux LED technology, four color temperature options, wide-range voltage compatibility, durable aluminum and PVC construction, and an approximately 50,000-hour rated life, the G24 Plug Light Series provides a versatile and reliable plug-in LED lighting solution.
