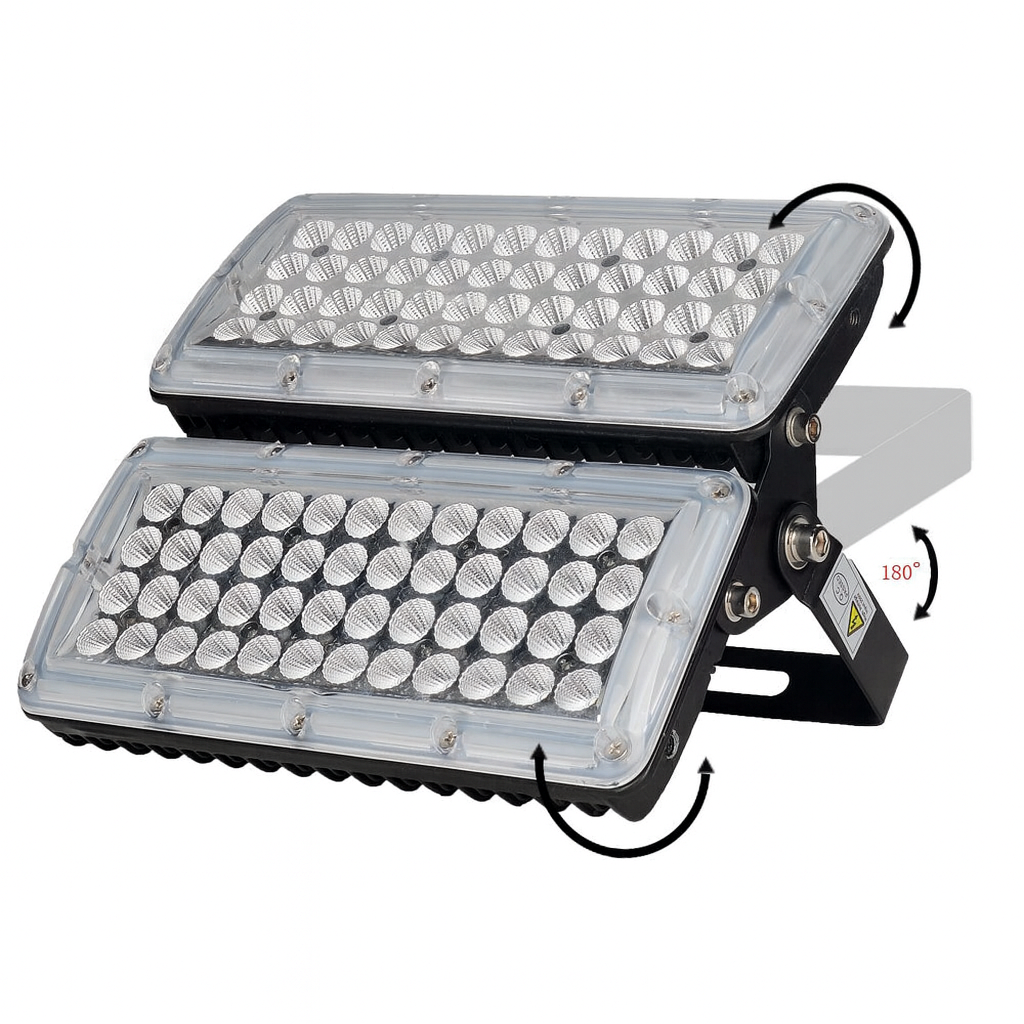

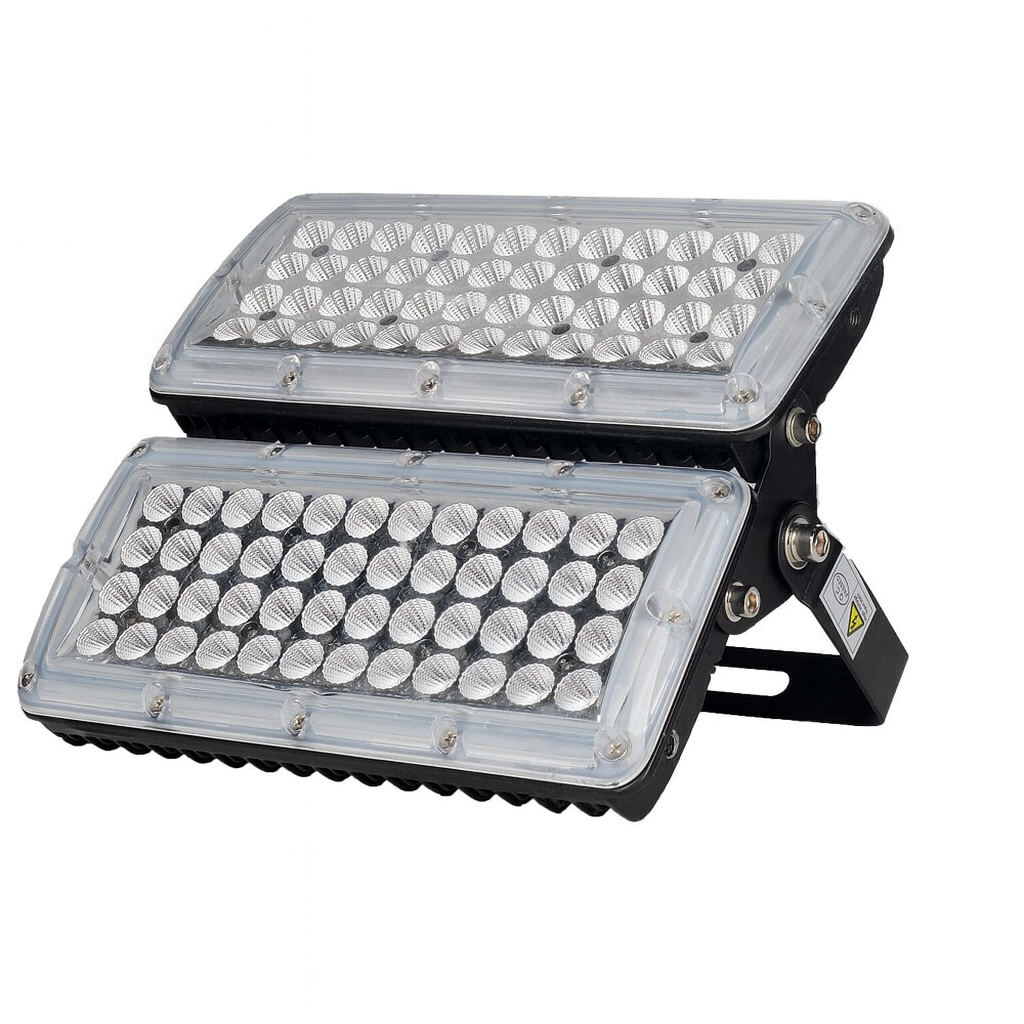

100W Asymmetric Flood Light Series
100W Asymmetric Flood Light Series
Couldn't load pickup availability
The 100W Asymmetric LED Flood Light Series delivers powerful, wide-area illumination for commercial, industrial, architectural, and outdoor applications. Producing up to 12,800 lumens while consuming only 100 watts, this fixture provides high-output, energy-efficient lighting for large spaces.
Powered by 96 Philips Lumileds LEDs, the fixture features a wide 120° beam angle for broad light distribution. Its durable die-cast aluminum construction and IP66 weatherproof rating provide reliable performance in demanding indoor and outdoor environments.
Features
- 100W LED with up to 12,800 lumens of light output
- 96 × Philips Lumileds LEDs
- 120° wide beam angle for broad area illumination
- Available in 3000K, 4000K, 5000K & 6500K
- CRI >85 for accurate color rendering
- Power factor >0.90
- Wide-range 85–277V AC operation
- Durable die-cast aluminum construction
- IP66 weatherproof rating
- Suitable for indoor & outdoor applications
- Operating temperature from -4°F to 113°F (-20°C to 45°C)
- Approximately 60,000-hour rated life
Color Temperature Options
| Color Temperature | Description |
|---|---|
| 3000K | Warm White |
| 4000K | Neutral White |
| 5000K | Cool White |
| 6500K | Bright White |
Specifications
| Product Type | Asymmetric LED Flood Light |
|---|---|
| Power | 100W |
| Light Output | Up to 12,800 lm |
| Input Voltage | 85–277V AC |
| LED Source | 96 × Philips Lumileds LEDs |
| Color Temperatures | 3000K / 4000K / 5000K / 6500K |
| CRI | >85 |
| Beam Angle | 120° |
| Power Factor | >0.90 |
| Material | Die-Cast Aluminum |
| IP Rating | IP66 |
| Operating Temperature | -4°F to 113°F (-20°C to 45°C) |
| Rated Life | Approximately 60,000 Hours |
Applications
- Sports Courts & Fields
- Stadium Areas
- Parking Lots & Parking Areas
- Building Facades
- Warehouses
- Commercial Properties
- Industrial Facilities
- Large Outdoor Areas
- Architectural Lighting
- General Area Lighting
Why Choose the Asymmetric LED Flood Light Series?
The 100W Asymmetric LED Flood Light produces up to 12,800 lumens with a wide 120° beam angle, providing broad illumination for sports areas, parking lots, building facades, warehouses, and other large commercial or outdoor spaces.
With 96 Philips Lumileds LEDs, CRI >85, durable die-cast aluminum construction, an IP66 weatherproof rating, four color temperature options, and an approximately 60,000-hour rated life, this fixture provides an efficient and durable solution for demanding wide-area lighting applications.
