10W MR16 Replacement Driver
10W MR16 Replacement Driver
Couldn't load pickup availability

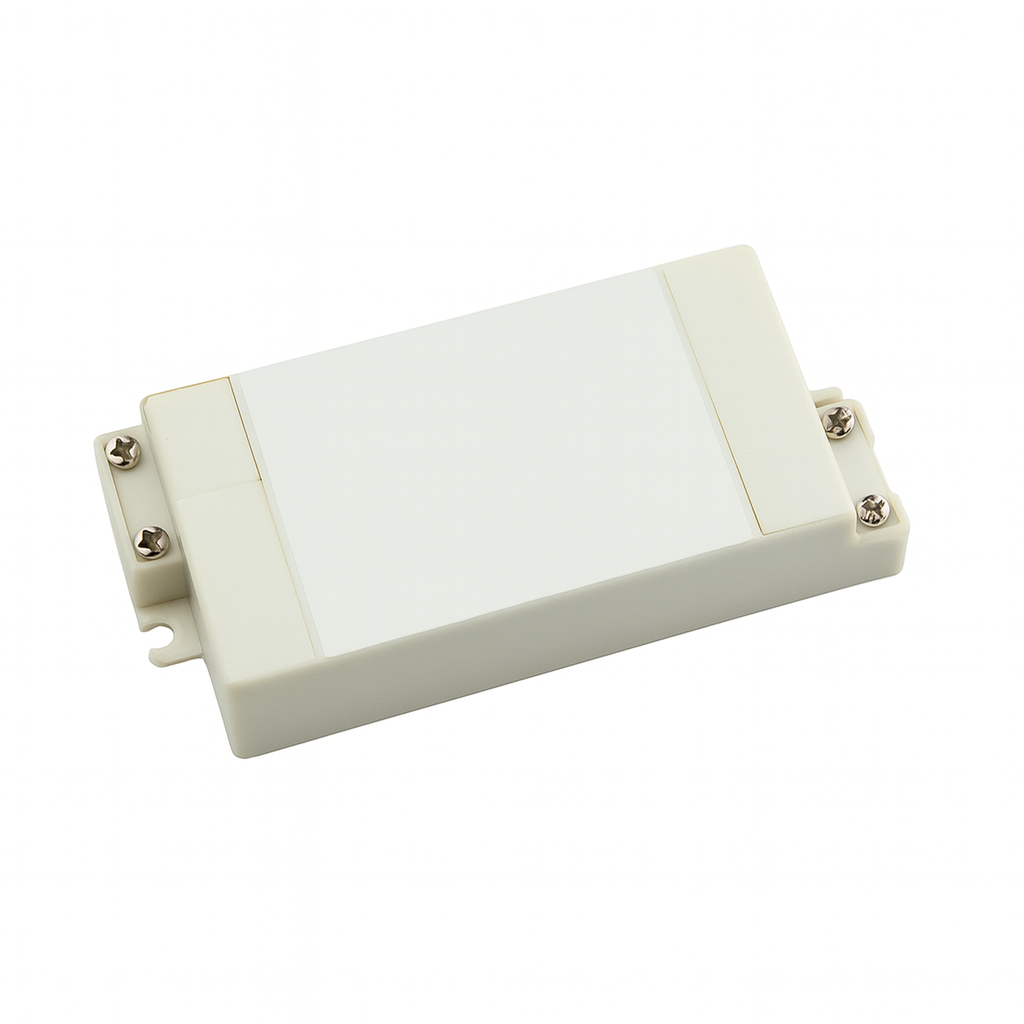

The 10W MR16 LED Lamp Replacement Driver is a compact power supply designed to replace compatible 10W MR16 LED lamp drivers. Providing DC 12V output at 800mA ±5%, it delivers stable power for MR16 LED lamps with loads up to 10W.
Designed for dry indoor environments, the driver features a lightweight IP40-rated plastic housing along with short-circuit, overload, and soft-start protection. Its compact dimensions make it well suited for residential, retail, display, and office lighting installations where space is limited.
Features
- Designed for MR16 LED lamps up to 10W
- AC 100–260V input range
- DC 12V output
- 800mA ±5% output current
- Supports up to 10W maximum load
- Built-in short-circuit protection
- Built-in overload protection
- Soft-start operation
- Compact and lightweight construction
- Slim plastic housing for installation in limited spaces
- IP40 rated
- Designed for dry indoor environments
- Non-dimmable
- CE and RoHS certified
Output Specifications
| Output Voltage | Output Current | Maximum Load | Application |
|---|---|---|---|
| DC 12V | 800mA ±5% | 10W | MR16 LED Lamps |
Specifications
| Product Type | MR16 LED Lamp Replacement Driver |
|---|---|
| Model Number | LED-LD25 |
| Maximum Load | 10W |
| Input Voltage | AC 100–260V, 50/60Hz |
| Output Voltage | DC 12V |
| Output Current | 800mA ±5% |
| Dimming | Non-Dimmable |
| Protection | Short-Circuit / Overload / Soft Start |
| Protection Rating | IP40 |
| Housing Material | Plastic |
| Dimensions | 3.74" × 1.73" × 0.91" (95 × 44 × 23 mm) |
| Weight | 0.15 lbs (68 g) |
| Shipping Weight | 0.20 lbs |
| Certifications | CE / RoHS |
| Environment | Indoor / Dry Locations Only |
Applications
- MR16 LED Lamps
- MR16 Replacement Lighting
- Residential Lighting
- Retail Lighting
- Display Lighting
- Office Lighting
- Accent Lighting
- Indoor / Dry-Location Lighting Installations
Why Choose the 10W MR16 LED Lamp Replacement Driver?
This replacement driver provides DC 12V output at 800mA ±5% for compatible MR16 LED lamps with loads up to 10W. Its wide AC 100–260V input range and compact construction make it a practical replacement solution for a variety of indoor lighting installations.
With built-in short-circuit and overload protection, soft-start operation, and a lightweight IP40 plastic housing, the driver provides dependable power for compatible MR16 LED lighting in residential, retail, display, and office environments.
