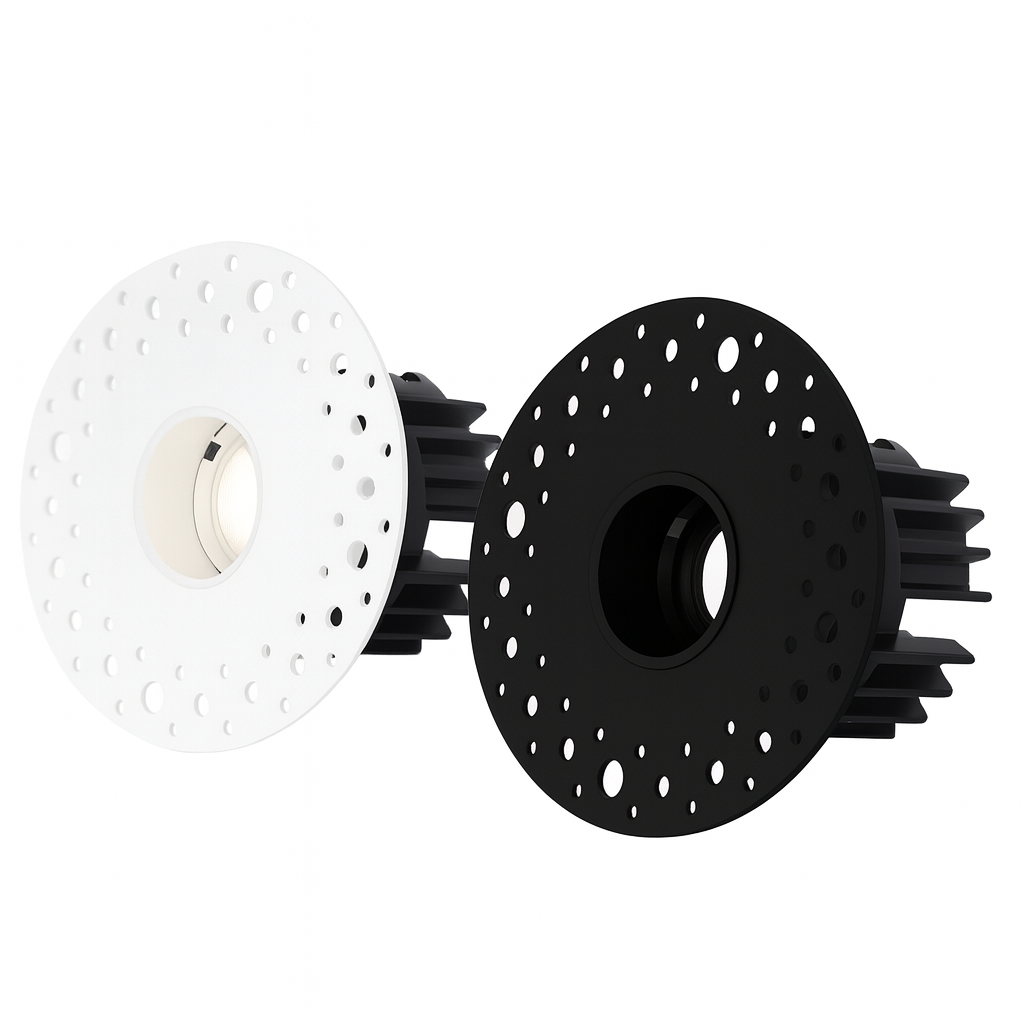

1.0-Inch Micro Dot Recessed – Trimless Downlight Series

The Micro Dot Recessed Downlight is a compact, high-performance fixture designed for tight plenum spaces. Ideal for architectural and commercial installations, it offers precision beam angles, multiple color temperatures, and a clean, trimless finish.

Product Features

Designed for tight plenum applications

Wet location listed for trims

1″ trim aperture with 35° cut-off angle

Universal input voltage (120V–277V)

3-year product warranty

Specifications

Construction: Die-cast aluminum trim with aluminum heat sink

Dimming: 0-10V or ELV/TRIAC (100% – 5%)

Input Voltage: 120V–277V AC

Power Options: 9W and 18W

Driver: Remote external driver

Finish: Powder-coated White or Black

Ceiling Thickness Supported: ½″ – 1″

Compliance: ETL Listed, Title 24, JA8, wet location rated

Models Available

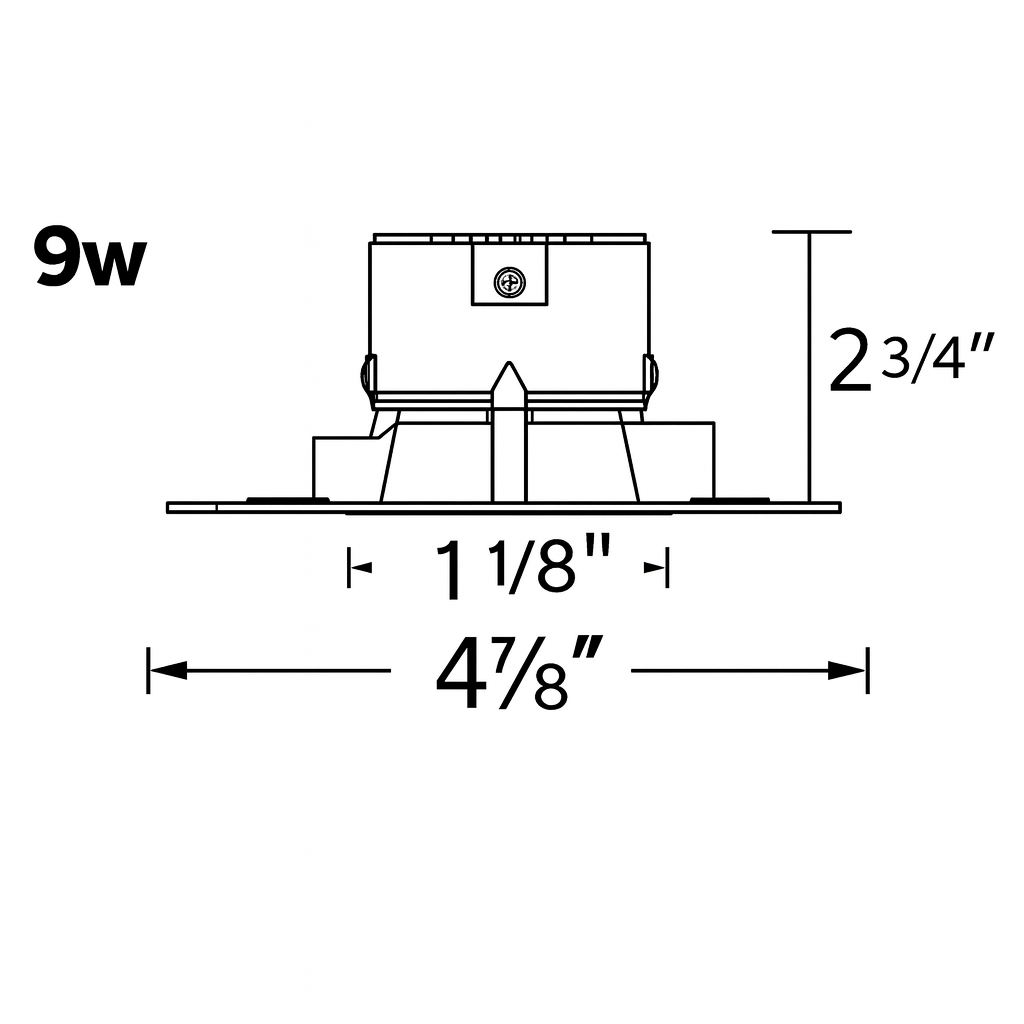

9W Options:

Round: RDMCRDOT-9W

Beam Angles: 17°, 24°, 40°, 50°

Output: Up to 1,260 lm

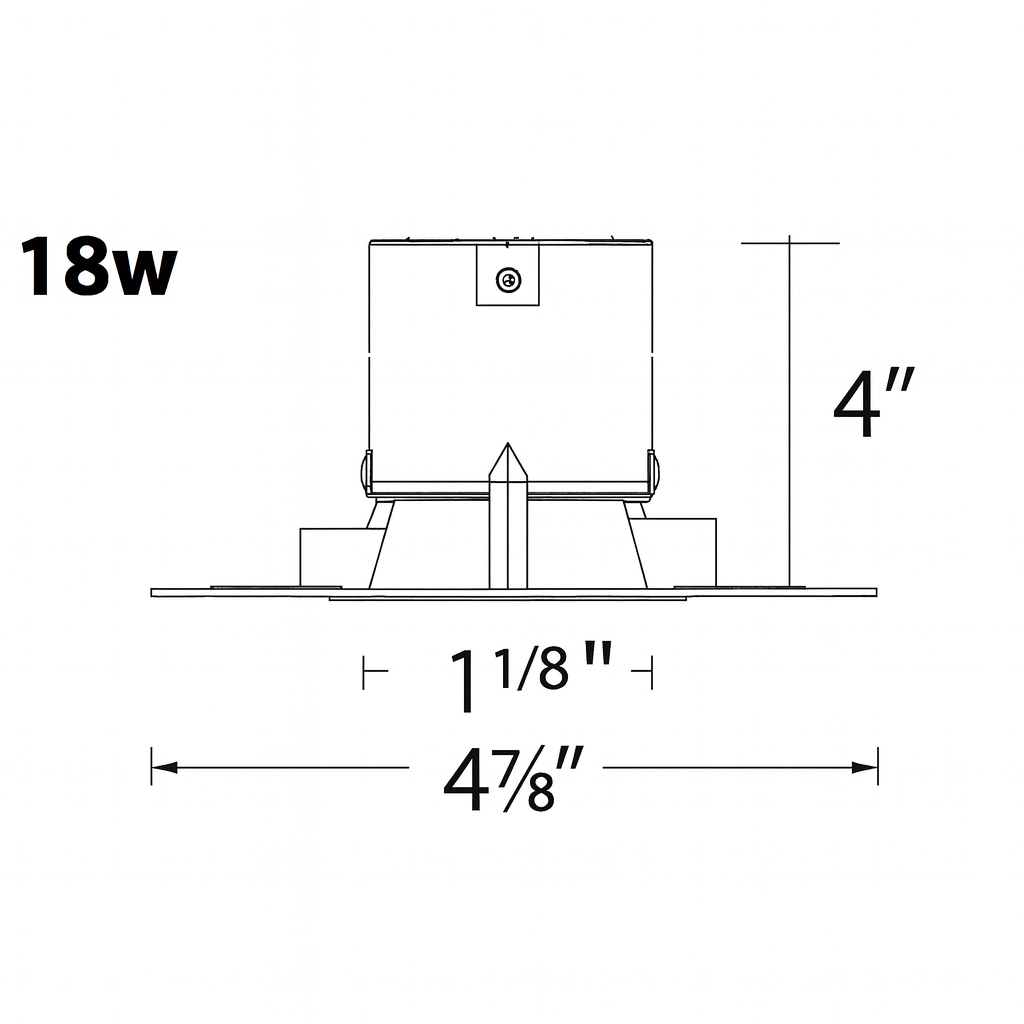

18W Options:

Round: RDMCRDOT-18W

Beam Angles: 17°, 24°, 40°, 50°

Output: Up to 2,520 lm

Color Temperature & CRI Options

2700K – CRI 90

3000K – CRI 90

3500K – CRI 85

4000K – CRI 85

5000K – CRI 85

6500K – CRI 85

5CCT – 2700K/3000K/4000K/5000K/6500K

Finishes

BLK – Black

WHT – White

Dimming Protocols

0-10V

120V
