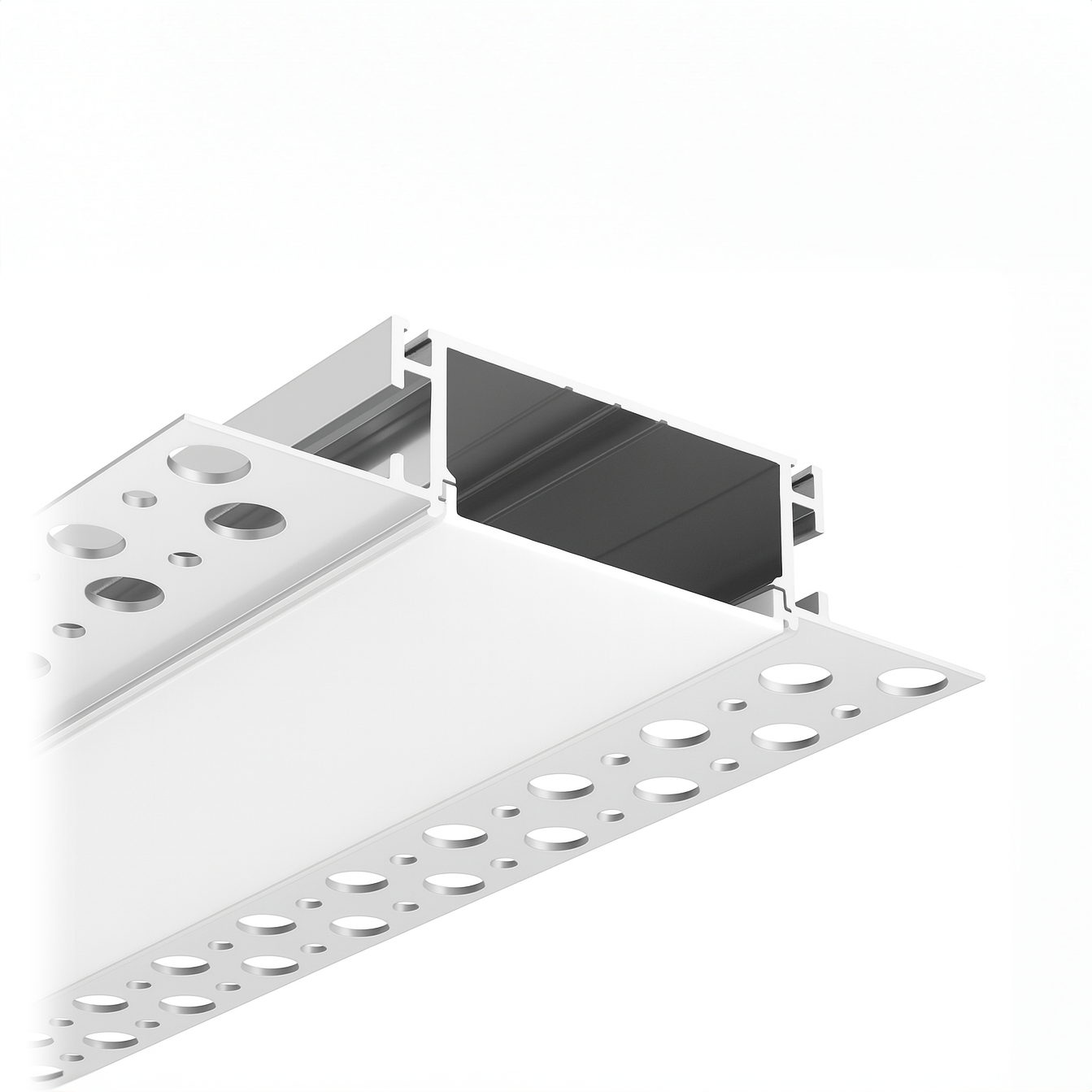

1.5-Inch Linear Architectural Trimless TLP-4018-24V Series

The TLP-4018 Series by Diamond Brite LEDs offers superior lighting performance in a 1.5-inch trimless recessed format. Designed for both aesthetic appeal and functionality, this high-output linear LED system is ideal for modern architectural, office, and accent lighting applications.

Key Features

High-efficiency light engine – only 8 watts per foot

Ultra-high light output: up to 1,150 lumens per foot

Cuttable every 2 inches (50mm)

24V constant voltage operation

IP20 waterproof rated

UL Listed for wet locations

Recessed mount for clean, trimless integration

LED Color Options

2700K – CRI 95

3000K – CRI 95

4200K – CRI 90

5000K – CRI 88

6500K – CRI 85

RGBWWW – Red / Green / Blue / White / Warm White

Custom CCTs available upon request

Optic Options

Frosted

Semi Clear

Clear

Standard Lengths

24"

36"

48"

78"

96"

120"

Custom lengths available upon request (in inches)

Applications

Architectural and ceiling lighting

Accent and ambient lighting

Area and general illumination

Office and commercial environments

Indoor and protected outdoor installations
