Diamond Brite LEDs
7W TrimLux Interlocking Trimless Module Series - 1 Inch
7W TrimLux Interlocking Trimless Module Series - 1 Inch
Couldn't load pickup availability
The 7W TrimLux Interlocking Trimless Module Series is a compact 1-inch canless LED spotlight designed to create clean, seamless trimless lighting installations. Its innovative interlocking mesh system allows multiple modules to connect together for flexible architectural lighting configurations.
Producing 500 lumens with only 7 watts of power, this compact module features 5-CCT selectable technology, a focused 38° flood beam, CRI 90 color rendering, and a trimless square aperture for a clean architectural finish.
Features
- 7W LED power consumption
- Produces 500 lumens
- 1-inch trimless module
- 5-CCT selectable: 2700K / 3000K / 3500K / 4000K / 5000K
- CRI 90
- 38° flood beam
- 120V operation
- Dimmable
- IC rated
- Air tight
- Wet location rated
- Canless installation
- Interlocking trimless mesh design
- Multiple modules can be interconnected for custom configurations
- ETL Listed
- 50,000-hour rated life
- 5-year warranty
Color Temperature Options
| Setting | Description |
| 2700K | Warm White |
| 3000K | Warm White |
| 3500K | Neutral Warm White |
| 4000K | Neutral White |
| 5000K | Cool White |
Specifications
| Product Type | Canless Trimless LED Spotlight |
| Series | TrimLux Interlocking Trimless Module Series |
| Model | LR25470 |
| Size | 1" |
| Power | 7W |
| Light Output | 500 lm |
| Efficacy | 71 lm/W |
| Input Voltage | 120V |
| Color Temperatures | 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | 90 |
| Beam Angle | 38° Flood |
| Dimming | Dimmable |
| Location Rating | Wet Location Rated |
| IC Rating | IC Rated |
| Construction | Air Tight |

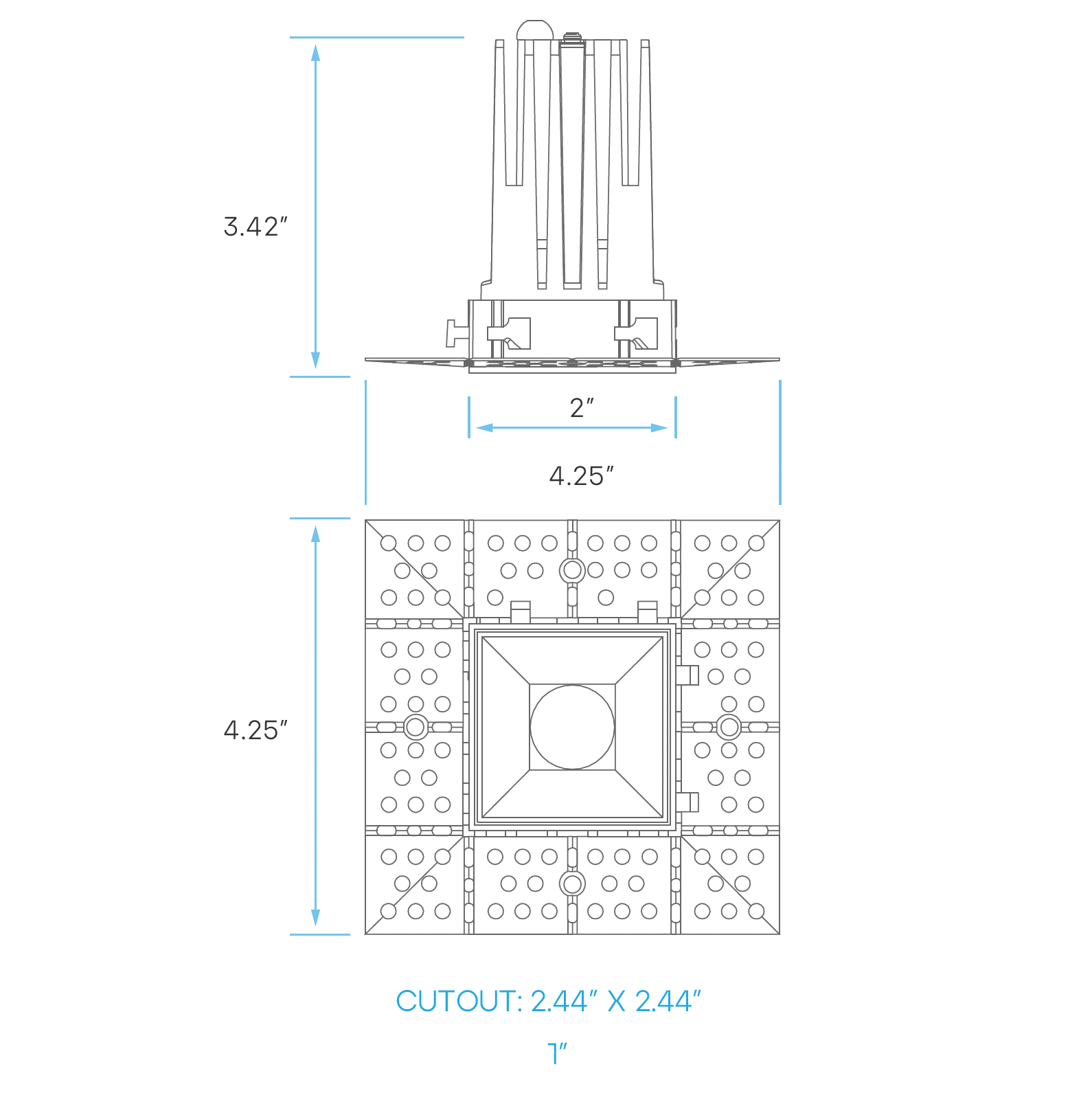

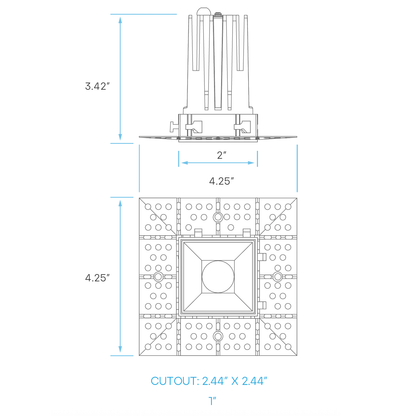

| Cutout | 2.44" × 2.44" |
| Rated Life | 50,000 Hours |
| Listing | ETL Listed |
| Warranty | 5 Years |
Applications
- Residential Interiors
- Retail Spaces
- Hospitality
- Restaurants
- Display Lighting
- Accent Lighting
- Architectural Lighting
- Custom Multi-Light Configurations
Why Choose the 7W TrimLux?

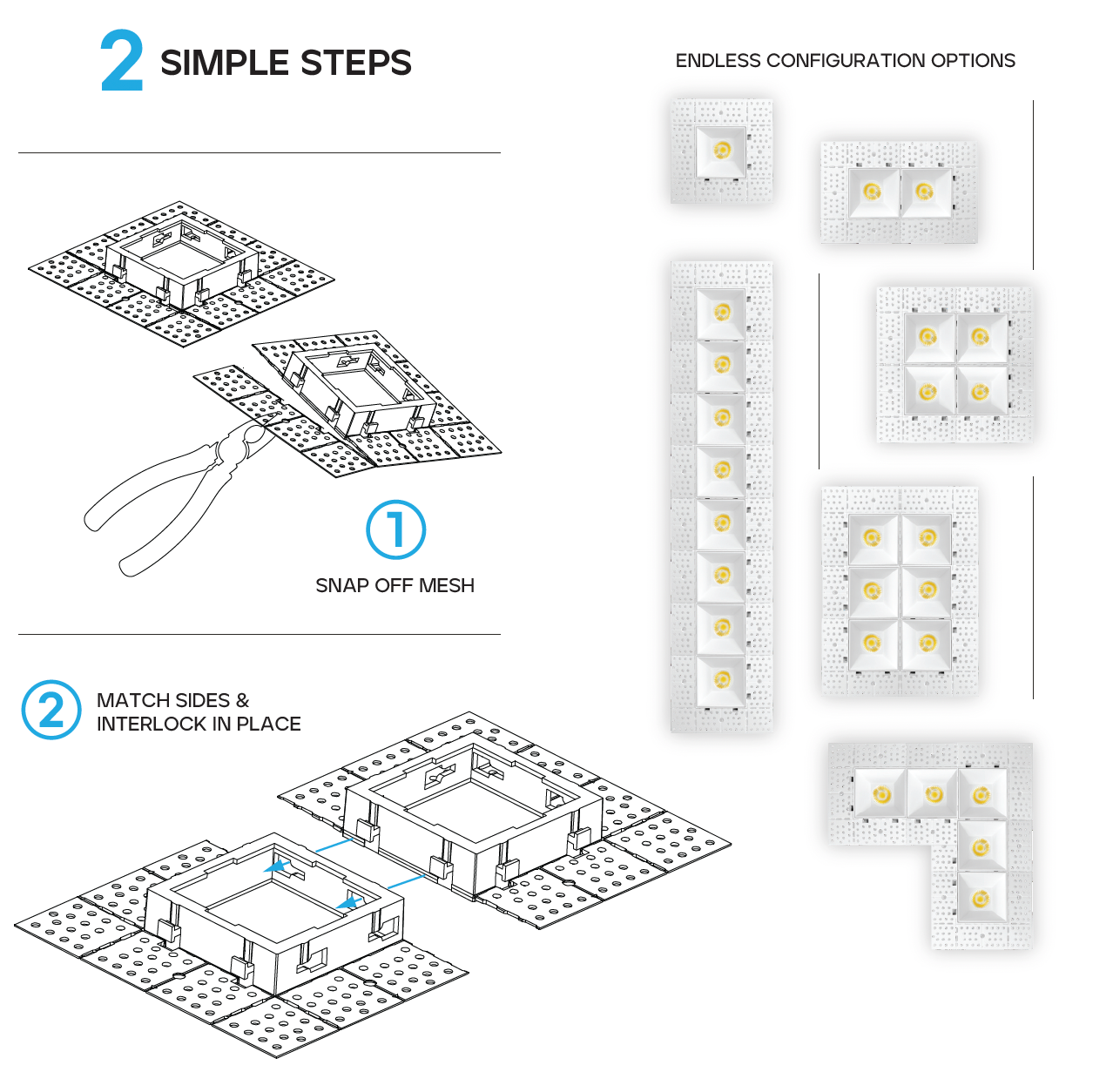

The 7W TrimLux Interlocking Trimless Module combines a compact 1-inch aperture with 500 lumens of output and a clean trimless finish. Its unique interlocking mesh design makes it possible to combine multiple modules into custom linear, square, rectangular, and other architectural lighting arrangements.
