Linea Wide
5.5W/FT Linea Wide Trimless Architectural TLP-1515 Series
5.5W/FT Linea Wide Trimless Architectural TLP-1515 Series
Couldn't load pickup availability

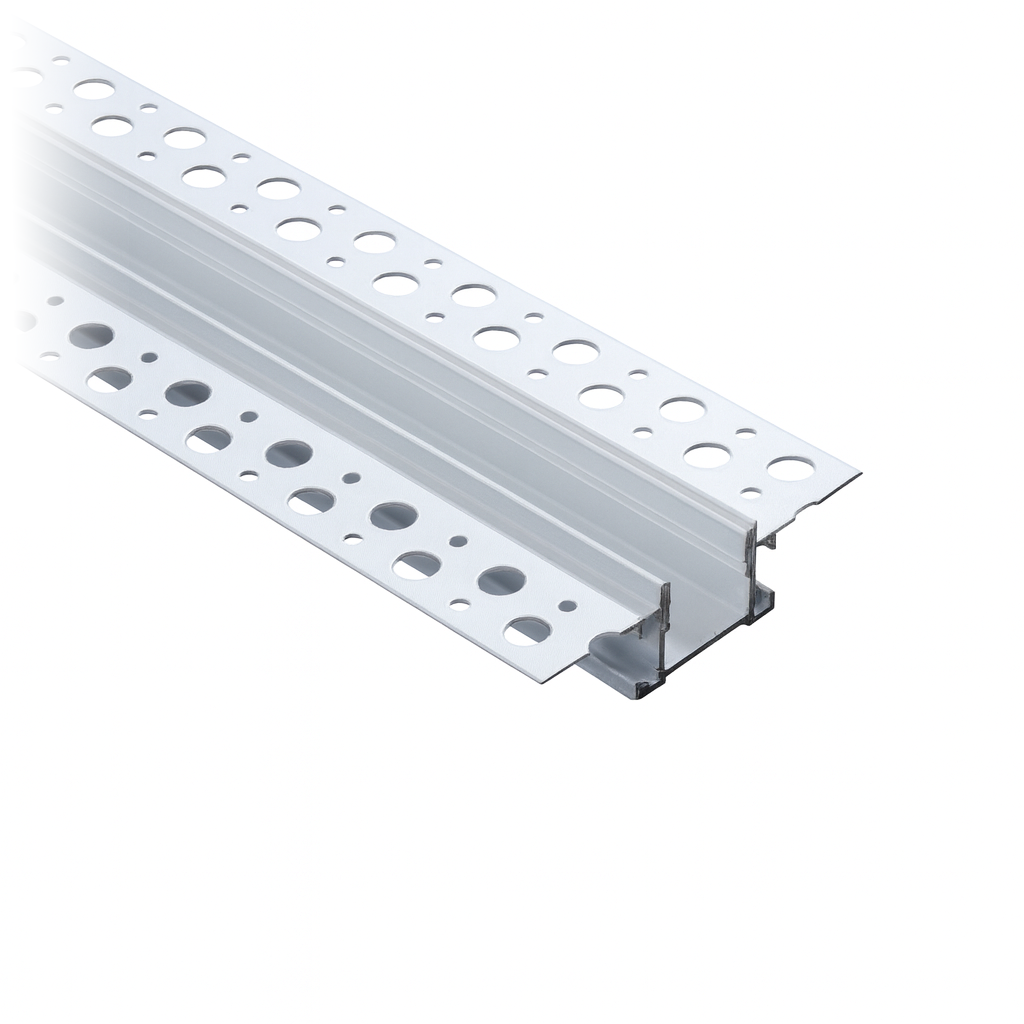

The 5.5W/FT Linea Wide Trimless Architectural TLP-1515 Series is a compact recessed linear LED luminaire designed for seamless architectural lighting installations. Delivering up to 785 lumens per foot while consuming only 5.5 watts per foot, the TLP-1515 combines efficient performance with a narrow trimless profile for clean integration into ceilings and architectural surfaces.
Operating on 24V constant voltage, the TLP-1515 Series features a broad 110° beam angle, dimming capability, multiple high-CRI color temperature options, RGBWWW availability, and three optical lens choices. Standard lengths are available from 24" to 120", with custom lengths available in 2" (50 mm) increments.
Features
- 5.5W per foot power consumption
- Produces up to 785 lumens per foot
- Trimless recessed architectural profile
- 110° beam angle
- Dimmable
- Cuttable every 2" (50 mm)
- Custom lengths available from 24" to 120" in 2" increments
- Standard lengths: 24", 36", 48", 78", 96" & 120"
- Color temperatures from 2700K to 6500K
- High CRI options up to CRI 95
- RGBWWW option available
- Frost, Semi-Clear & Clear optics
- 24V constant-voltage operation
- IP20 rated
- UL Listed for wet locations
- Suitable for architectural, ceiling, accent, office & general lighting applications
Color Temperature & CRI Options
| LED Color | Description | CRI |
| 2700K | Warm White | CRI 95 |
| 3000K | Soft White | CRI 95 |
| 4200K | Neutral White | CRI 90 |
| 5000K | Cool White | CRI 88 |
| 6500K | Bright White | CRI 85 |
| RGBWWW | Red / Green / Blue / White / Warm White | — |
Optics Options
| Optic | Ordering Code |
| Frost | FC |
| Semi-Clear | SC |
| Clear | CL |
Standard Length Options
| Length | Ordering Code |
| 24" | 2 |
| 36" | 3 |
| 48" | 4 |
| 78" | 6 |
| 96" | 8 |
| 120" | 10 |
Custom lengths are available from 24" to 120" in 2" (50 mm) increments.
Specifications
| Product Type | Trimless Recessed Linear LED Luminaire |
| Series | Linea Wide Trimless Architectural TLP-1515 Series |
| Model | TLP-1515 |
| Power Consumption | 5.5W/FT |
| Maximum Light Output | Up to 785 lm/FT |
| Input Voltage | 24V Constant Voltage |
| Mounting | Recessed / Trimless |
| Beam Angle | 110° |
| Dimming | Dimmable |
| Standard Lengths | 24" / 36" / 48" / 78" / 96" / 120" |
| Custom Lengths | 24"–120" in 2" (50 mm) Increments |
| Cut Interval | 2" (50 mm) |
| Color Temperatures | 2700K / 3000K / 4200K / 5000K / 6500K |
| Color Option | RGBWWW |
| CRI | 85–95 Depending on CCT |
| Optics | Frost / Semi-Clear / Clear |
| IP Rating | IP20 |
| Certification | UL Listed for Wet Locations |
Applications
- Architectural Lighting
- Ceiling Lighting
- Accent Lighting
- Area & General Lighting
- Office Lighting
- Commercial Interiors
- Recessed Linear Lighting
- Residential Architectural Lighting
Why Choose the TLP-1515 Series?
The Linea Wide Trimless Architectural TLP-1515 Series combines a narrow recessed profile with efficient 5.5W per foot operation and up to 785 lumens per foot. Its trimless construction creates a clean, integrated architectural appearance while the broad 110° beam provides smooth general and accent illumination.
With six standard lengths, custom sizing in 2" increments, multiple high-CRI white color temperatures, RGBWWW capability, three optical lens choices, dimming, and 24V constant-voltage operation, the TLP-1515 provides a highly configurable solution for modern residential and commercial lighting projects.
