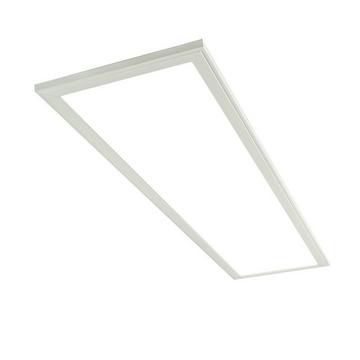

1x4 PaneLite™ LED Light Series
Select LED colorQty
6,500K-Bright White$.00
5,000K-Pure white$.00
4,000K-Soft white$.00
3,000K-Warm white$.00
Mounting Options
*
add to cart buy now add to wishlist
  • Equivalent To: 80W Fluorescent Light source
  • Wattage: 45 Watts
  • Lumens: 5,175 Lumens
  • Lumens per Watt (Efficacy): 115lm / Watt
  • Input Voltage: 100~277VAC 50/60Hz
  • LED Chip Brand: BridgeLux
  • Available LED Color:  3000K / 4000K / 5000K / 6500K (Selectable)
  • Trim Color: White
  • Beam spread: 120°
  • Power Factor: >0.90
  • CRI (Color Rendering Index): > 85
  • Lifespan: 50,000 hours
  • Warranty: 5 Years
  • Certificates: UL, cUL listed, DLC qualified, Class I
  • IP Rating: IP20
  • Dimming: Compatible with 0-10V DC dimmers
  • Dimensions (inches): (L x W x H): Panel: 23.75" x 11.75" x H:0.43" (2.25" with LED driver enclosure)
  • Dimensions (MM):  (L x W x H) 1213 x 300 x H: 10.9 (57mm with LED driver enclosure)
  • Product Weight: 9.25 LB
  • Model Number: PNL1X4-45W
Details:

Introducing the all new 1x4 PaneLite™ Ultra-thin Side-lit LED Panel Light combines smooth, diffuse light output with an extremely low profile – making it easy on the eyes and easy to install in any ceiling applications.
The unique light output of the PaneLite comes from the LEDs embedded along the interior sides of each 2'x2' panel, delivers up to 5,175 lumens using only 45 watts of energy consumption, that compares to a traditional 80 watt 1'x4' Fluorescent troffer.

This light is diffused through a lens to ensure soft, even illumination which eliminates glare and uses 50% less energy compared to Fluorescent light source and lasts 120x longer – perfect for offices, showrooms, class rooms, exhibition halls, Hospitality and other workspace requiring high quality ambient lighting.

At less than half an inch tall (2.25 inches with power supply enclosure), the low profile PaneLite™ Ultra-thin Side-lit LED Panel Light offers industry-leading versatility and ease of installation. Wherever it fits, it sits; simply wire the included driver to line voltage in your wall or ceiling.
This PaneLite™ Ultra-thin Side-lit LED Panel Light is UL listed and DLC Qualified to ensure safety and reliability. Each unit is rated to last over 50,000 hours.

  • Multiple Bracket options: Lay-in Ceiling Grid (No brackets Required), Surface mounting trim Kit, Recessed mounting clips and suspended mounting cable systems.
  • Available LED color temperatures: 3000K, 4000K, 5000K, 6500K.

**Volume discounts and distributor pricing available. Please contact us at: 1800-533-4898 for more details.
