Diamond Brite LEDs
2W MR11 Compact Spot Lamp Series
2W MR11 Compact Spot Lamp Series
Couldn't load pickup availability

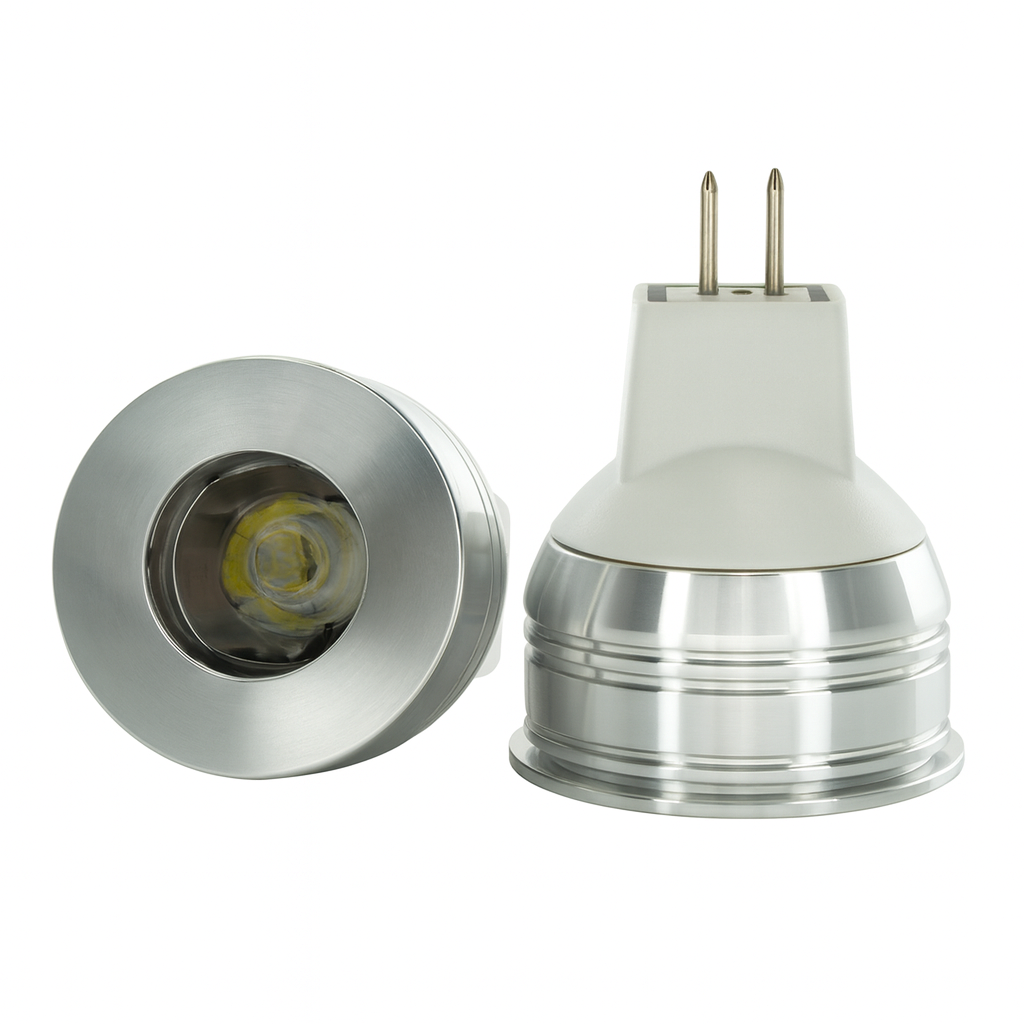

The 2W MR11 Compact LED Spot Lamp Series delivers efficient, focused illumination in a miniature form factor designed for tight spaces and specialty lighting applications. Powered by 1 BridgeLux high-power LED, it produces 130 lumens while consuming only 2W, providing an energy-efficient replacement for traditional 20W halogen, incandescent, or CFL lamps.
Built with an aluminum alloy and PVC housing, brushed aluminum finish, advanced heat dissipation, and an anti-glare optical lens, the MR11 Compact provides crisp illumination through a focused 25° beam angle. Its compact dimensions and 12V AC/DC operation make it particularly well suited for showcases, furniture lighting, elevators, yachts, and specialty fixtures.
Features
- 2W LED spot lamp replacing traditional 20W lamps
- Produces 130 lumens
- Approximately 65 lm/W efficacy
- Powered by 1 BridgeLux high-power LED
- Color options: 3500K Soft White, 6500K Bright White, and 10000K Blue Sky
- 25° beam angle for focused illumination
- GU5.3 socket
- 12V AC/DC operation
- Anti-glare optical lens
- Advanced heat dissipation design
- Aluminum alloy + PVC housing
- Brushed aluminum finish
- CRI >80
- Power Factor >0.90
- 60,000-hour rated life
- Non-dimmable
- CE, RoHS, and FCC certified
- 2-year warranty
Color Temperature Options
| Color Temperature | Light Appearance |
|---|---|
| 3500K | Soft White |
| 6500K | Bright White |
| 10000K | Blue Sky |
Specifications
| Product Type | MR11 LED Spot Lamp |
|---|---|
| Series | Compact |
| Wattage | 2W |
| Traditional Lamp Equivalent | 20W |
| Light Output | 130 Lumens |
| Efficacy | Approximately 65 lm/W |
| LED Source | 1 BridgeLux High-Power LED |
| Color Temperature | 3500K / 6500K / 10000K |
| CRI | >80 |
| Beam Angle | 25° |
| Base Type | GU5.3 |
| Input Voltage | 12V AC/DC |
| Power Factor | >0.90 |
| Dimming | Non-Dimmable |
| Housing | Aluminum Alloy + PVC |
| Finish | Brushed Aluminum |
| Dimensions | 1.38" Diameter × 1.57" Height (35 × 40 mm) |
| Weight | 0.05 lbs |
| Operating Temperature | -4°F to 122°F (-20°C to +50°C) |
| Rated Life | 60,000 Hours |
| Certifications | CE / RoHS / FCC |
| Warranty | 2 Years |
Applications
- Display Cases and Showcases
- Furniture Lighting
- Accent Fixtures
- Elevators
- Compact Architectural Spaces
- Yachts and Marine Lighting
- Specialty Lighting
- Small Recessed Fixtures
Why Choose the MR11 Compact LED Spot Lamp?
The MR11 Compact LED Spot Lamp delivers 130 lumens from only 2W in an exceptionally compact package, making it ideal for applications where space is limited. Its focused 25° beam and anti-glare optical lens provide precise illumination for displays, showcases, furniture, architectural details, and other specialty applications.
With BridgeLux LED technology, 12V AC/DC operation, a durable brushed aluminum housing, three color temperature options, a 60,000-hour rated life, CE, RoHS, and FCC certifications, and a 2-year warranty, the MR11 Compact provides a reliable and energy-efficient alternative to traditional 20W lamps.
