Diamond Brite LEDs
Linear Spotify Strip Series
Linear Spotify Strip Series
Couldn't load pickup availability

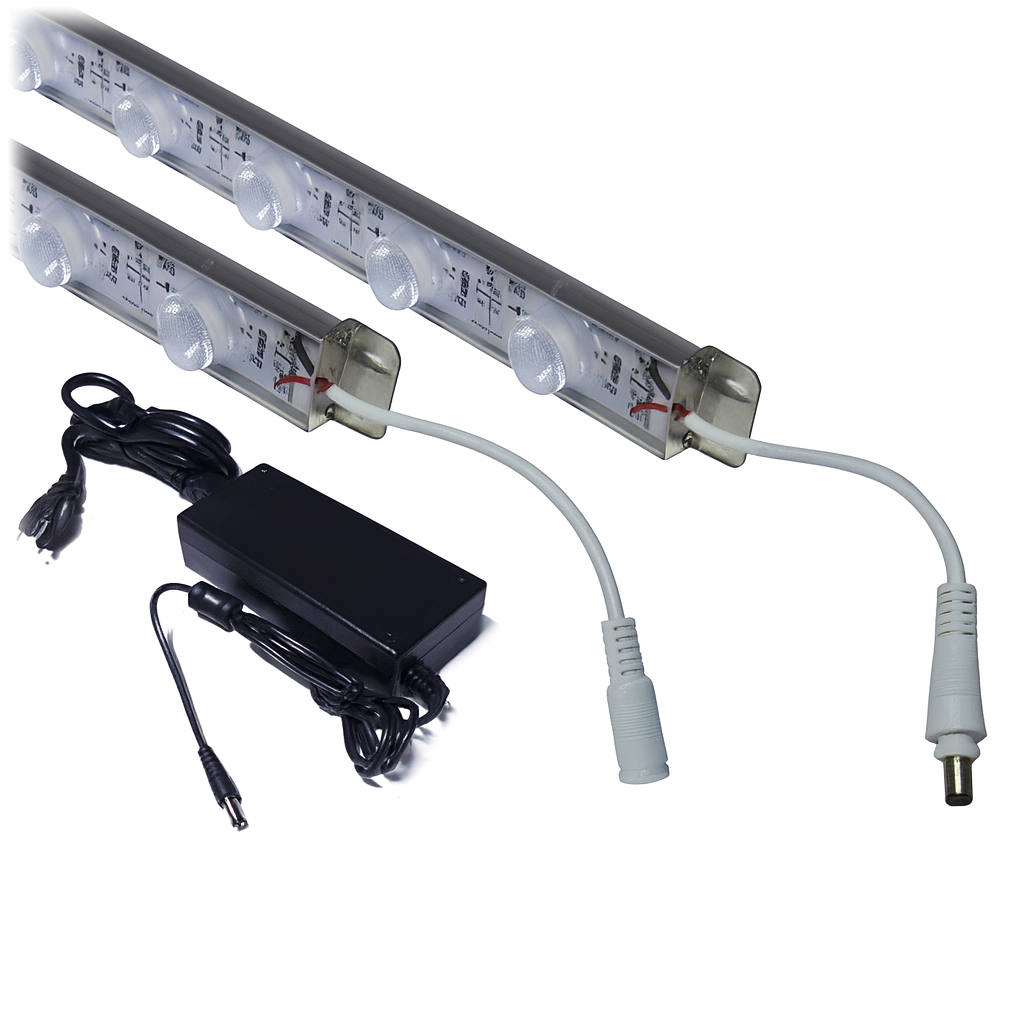

The Linear Spotify LED Strip Series is a high-performance, low-profile linear LED system designed for architectural, retail, display, and accent lighting applications. Featuring Osram LEDs, the series delivers powerful illumination in a slim, linkable format suitable for continuous linear installations.
Available in multiple lengths with configurations up to 40" (1,000 mm), the Linear Spotify LED Strip Series provides up to 6,860 lumens at 28W for the 40-inch configuration. Multiple beam angles, white color temperatures, Duo White, dedicated accent colors, and IP20 or IP65 configurations provide extensive flexibility for indoor and outdoor lighting projects.
Features
- High-performance Osram LEDs
- Up to 6,860 lumens from a 40" (1,000 mm) configuration
- 28W power consumption at 40" (1,000 mm)
- Slim, low-profile linear design
- Linkable configuration for continuous runs
- Cuttable every approximately 2-1/8" (55 mm)
- 24V constant-voltage operation
- 25° Narrow, 45° Medium, and 60° Wide beam options
- White color temperatures from 2700K to 10000K
- High CRI options up to CRI 95
- Duo White 2700K & 6500K option
- Amber, Blue, Green, and Red accent color options
- IP20 configuration for indoor applications
- IP65 configuration for indoor/outdoor weather-resistant applications
- ETL Listed for wet locations
White Color Temperature & CRI Options
| Color Temperature | CRI |
|---|---|
| 2700K | 95 |
| 4200K | 90 |
| 5000K | 88 |
| 6500K | 85 |
| 10000K | 80 |
Specialty Color Options
| Option | Color / Wavelength | CRI |
|---|---|---|
| Duo White | 2700K & 6500K | 95 |
| Amber | 580 nm | — |
| Blue | Blue | — |
| Green | Green | — |
| Red | Red | — |
Available Lengths & Power
| Length | Power |
|---|---|
| 9" (228 mm) | 6W |
| Up to 40" (1,000 mm) | Up to 28W |
Additional lengths are available between the listed configurations based on project requirements.
Optical Options
| Beam Angle | Distribution |
|---|---|
| 25° | Narrow |
| 45° | Medium |
| 60° | Wide |
IP Rating Options
| IP Rating | Application |
|---|---|
| IP20 | Indoor Applications |
| IP65 | Indoor / Outdoor Weather-Resistant Applications |
Specifications
| Product Type | High-Performance Linear LED Strip |
|---|---|
| Series | Linear Spotify LED Strip Series |
| LED Source | Osram LEDs |
| Maximum Power | 28W at 40" (1,000 mm) |
| Maximum Light Output | Up to 6,860 lm |
| Length Range | 9" (228 mm) to 40" (1,000 mm) |
| Cut Interval | Approximately 2-1/8" (55 mm) |
| Voltage | 24V Constant Voltage |
| White CCT Options | 2700K / 4200K / 5000K / 6500K / 10000K |
| Duo White | 2700K & 6500K |
| Accent Colors | Amber / Blue / Green / Red |
| Beam Angles | 25° / 45° / 60° |
| IP Rating Options | IP20 / IP65 |
| Certification | ETL Listed for Wet Locations |
Applications

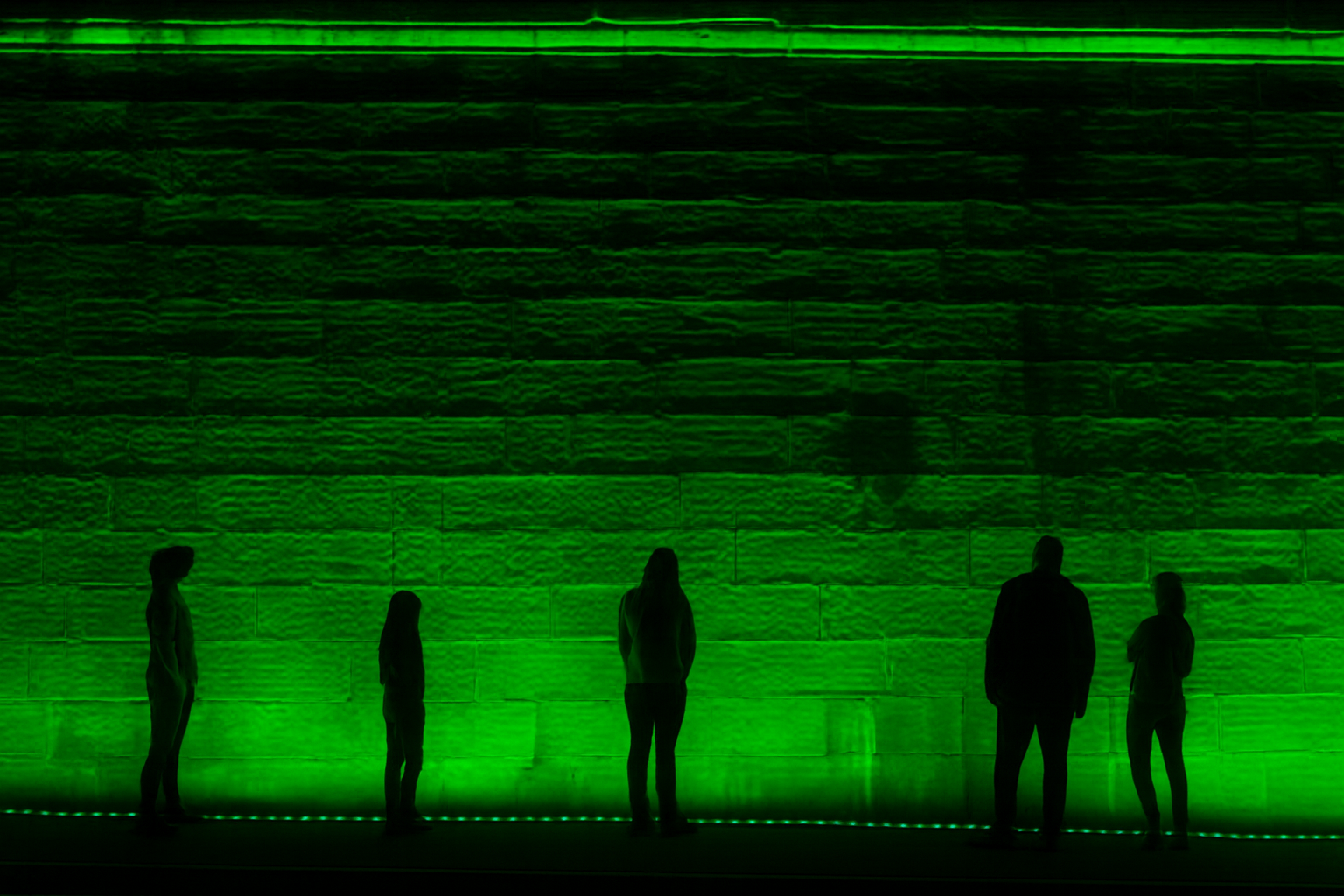

- Architectural Wall Washing
- Display Lighting
- Retail Lighting
- Showcase Lighting
- Architectural Accent Lighting
- Under-Cabinet Lighting
- Light Boxes
- Signage Backlighting
- Continuous Linear Lighting
- Indoor Lighting Projects
- Outdoor Applications with IP65 Configuration
Why Choose the Linear Spotify LED Strip Series?
The Linear Spotify LED Strip Series combines Osram LED technology with a slim, linkable design capable of producing up to 6,860 lumens. Multiple 25°, 45°, and 60° optical distributions allow the system to be configured for focused accent lighting, display illumination, wall washing, or broader architectural applications.
With 24V constant-voltage operation, multiple white CCTs, Duo White and accent color options, flexible lengths, and IP20 or IP65 configurations, the Linear Spotify LED Strip Series provides a versatile solution for professional architectural, retail, display, and indoor/outdoor lighting installations.
