14W Rhino T8 Tube Series - 3'
14W Rhino T8 Tube Series - 3'
Couldn't load pickup availability

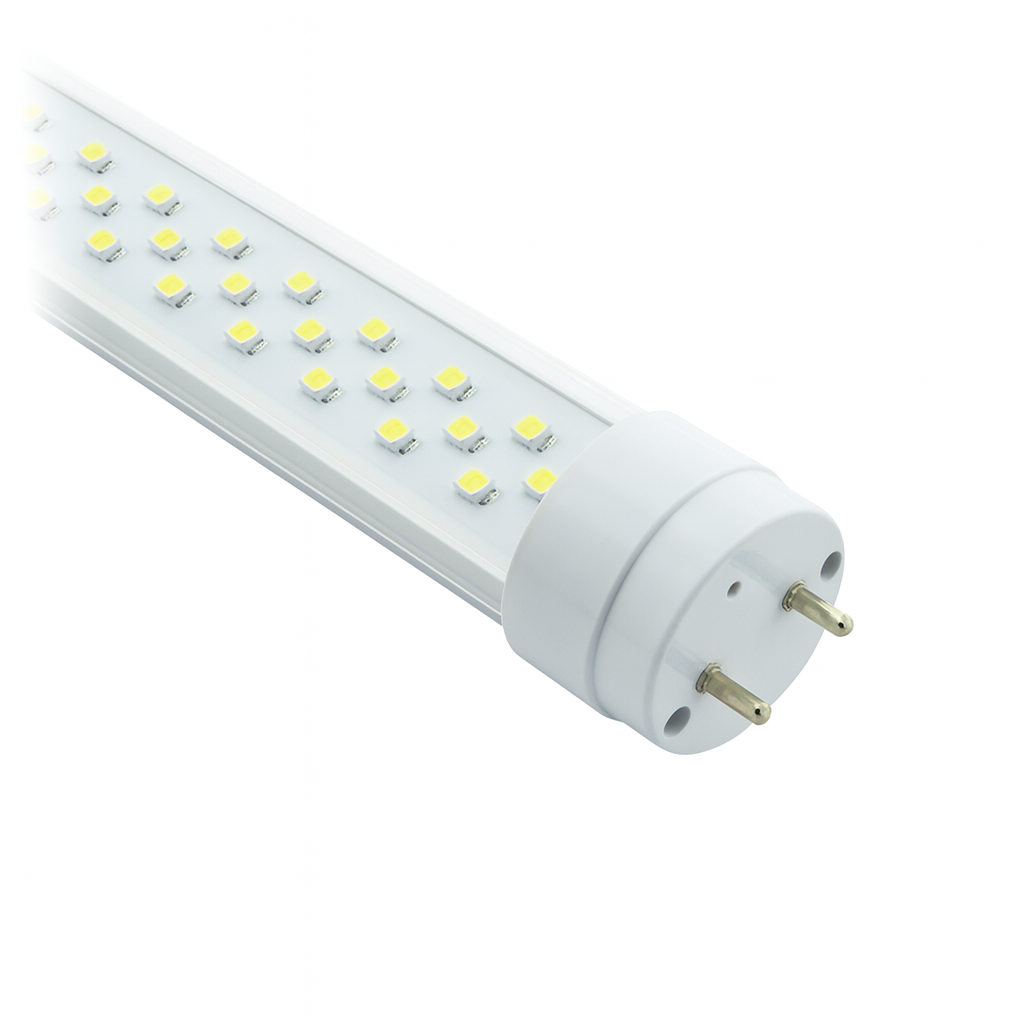

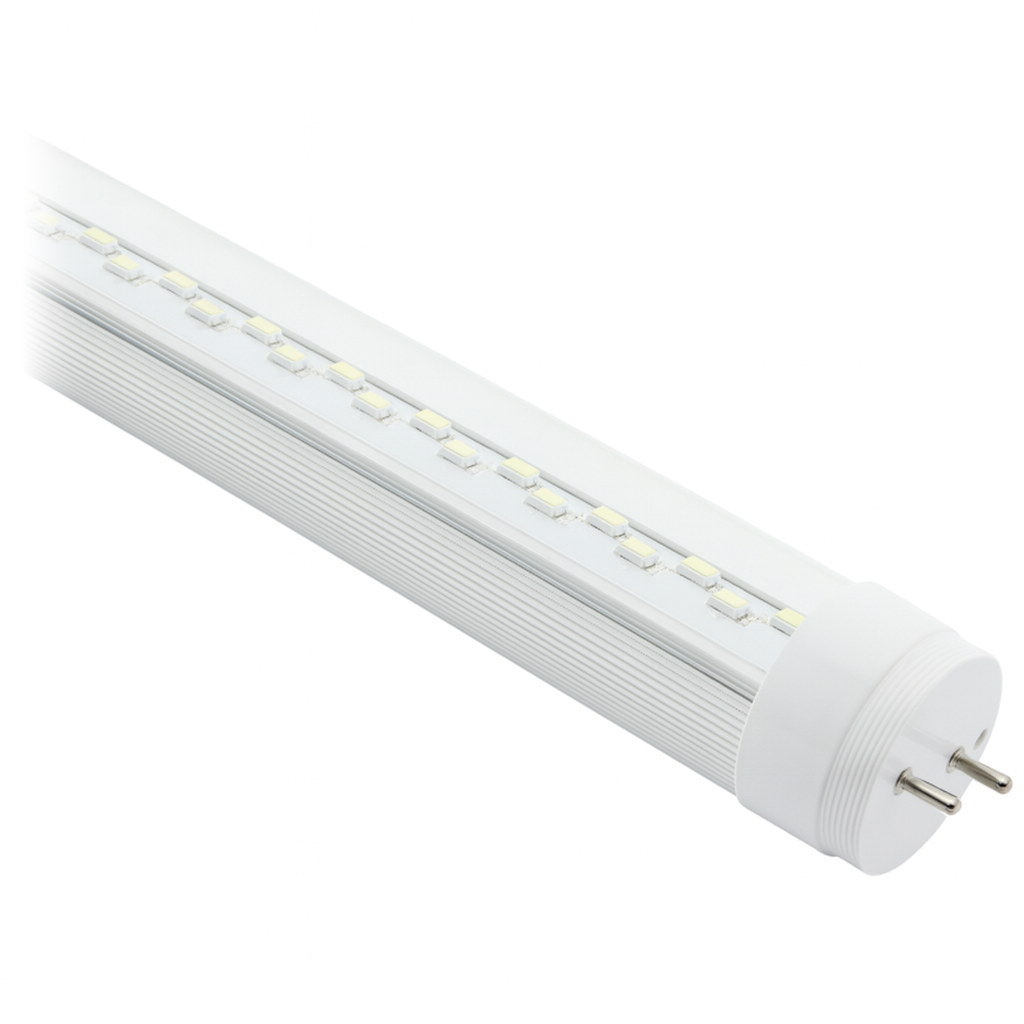

The 14W 3' Rhino T8 LED Tube Series provides an energy-efficient retrofit solution for outdated fluorescent lighting in commercial, retail, residential, warehouse, and hospitality applications. Consuming only 14W while producing 1,400 lumens, it provides an efficient replacement for traditional 30W fluorescent T8 lamps.
Powered by Epistar LEDs, the Rhino T8 features a wide 120° beam angle, durable aluminum alloy housing, and a choice of Frosted or Clear lenses. Designed for ballast-bypass installation, the tube incorporates an internal isolated driver and operates directly from AC90–277V after the existing ballast is removed.
Features
- 14W LED tube replaces a traditional 30W fluorescent T8
- Produces 1,400 lumens
- 100 lm/W efficacy
- Powered by Epistar LEDs
- 216 high-power LEDs
- Color temperatures: 3000K, 4500K, and 6500K
- 120° beam angle for wide light distribution
- Frosted or Clear lens options
- G13 Bi-Pin base
- AC90–277V, 50/60Hz operation
- Direct-wire ballast-bypass installation
- Internal isolated driver
- No external ballast or starter required after retrofit
- Instant-on, flicker-free operation
- Designed for reliable startup in cold environments
- Aluminum alloy housing with advanced heat dissipation
- Mercury, lead, and UV free
- 100% recyclable
- 60,000-hour rated life
- CE, RoHS, and FCC certified
- 2-year warranty
Color Temperature Options
| Color Temperature | Light Appearance |
|---|---|
| 3000K | Warm White |
| 4500K | Pure White |
| 6500K | Bright White |
Lens Options
| Lens | Availability |
|---|---|
| Frosted | Available |
| Clear | Available |
Installation & Retrofit
| Installation Type | Direct-Wire / Ballast Bypass |
|---|---|
| Ballast | Existing Ballast Must Be Removed |
| Driver | Internal Isolated Driver |
| Starter | Not Required After Retrofit |
| Retrofit Instructions | Included |
Specifications
| Product Type | T8 LED Tube |
|---|---|
| Series | Rhino |
| Wattage | 14W |
| Fluorescent Replacement | 30W T8 |
| Light Output | 1,400 Lumens |
| Efficacy | 100 lm/W |
| LED Source | Epistar LEDs |
| LED Quantity | 216 |
| Color Temperature | 3000K / 4500K / 6500K |
| CRI | >80 |
| Beam Angle | 120° |
| Base Type | G13 Bi-Pin |
| Input Voltage | AC90–277V, 50/60Hz |
| Power Factor | >0.90 |
| Dimming | Non-Dimmable |
| Rotating End Caps | No |
| Lens Options | Frosted / Clear |
| Housing | Aluminum Alloy |
| Dimensions | 35.55" Length × 1.02" Diameter (903 × 26 mm) |
| Weight | 0.60 lbs |
| Operating Temperature | -4°F to 113°F (-20°C to +45°C) |
| Rated Life | 60,000 Hours |
| Certifications | CE / RoHS / FCC |
| Warranty | 2 Years |
Applications
- Ceiling Troffers
- Strip Light Fixtures
- Offices
- Hotels and Hospitality Spaces
- Showrooms
- Supermarkets
- Retail Stores
- Parking Garages
- Warehouses
- Government Facilities
- Residential and Commercial Interiors
Why Choose the 14W 3-Foot Rhino T8 LED Tube Series?
The Rhino T8 LED Tube produces 1,400 lumens from only 14W, providing an efficient replacement for traditional 30W fluorescent T8 lamps. Its 100 lm/W efficacy, wide 120° beam angle, Frosted or Clear lens options, and durable aluminum construction make it suitable for a broad range of general lighting and retrofit applications.
With ballast-bypass installation, an internal isolated driver, instant-on operation, a 60,000-hour rated life, CE, RoHS, and FCC certifications, and a 2-year warranty, the Rhino T8 provides a reliable, low-maintenance LED upgrade for offices, retail stores, hotels, supermarkets, warehouses, parking garages, and other residential or commercial environments.
